제품 상세 정보:
|
인증: | CE | Nane: | 자전된 실란트 퍼지는 테이블 |
---|---|---|---|
상태: | 새롭습니다 | 애프터 서비스는 제공되었습니다: | 해외로 기계류를 서비스할 수 있는 엔지니어들 |
전압: | 380V 50Hz(Customizable) | 제품: | 판매 유리 공장을 위한 유리 생산 라인 / 기계를 격리하기 |
용법: | 격리 유리를 만들기 | 신청: | 코팅 방수제 |
색: | 청색 | 기능: | 자전 테이블 |
하이 라이트: | Glass Sealant Silicone Coating Machine,Insulating Glass Silicone Coating Machine,Insulating Glass adhesive coating machine |
Two Component Silicone Coating Rotating Sealant Spreading Table

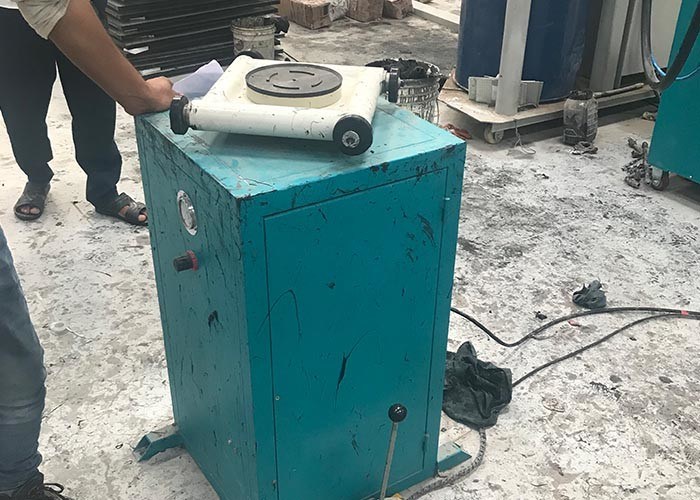

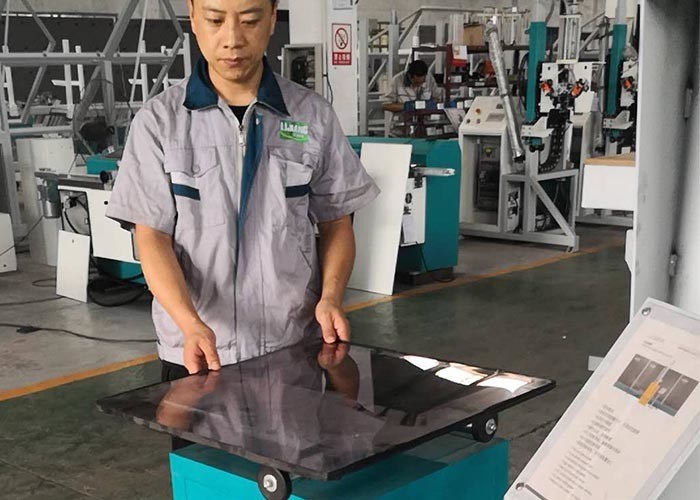

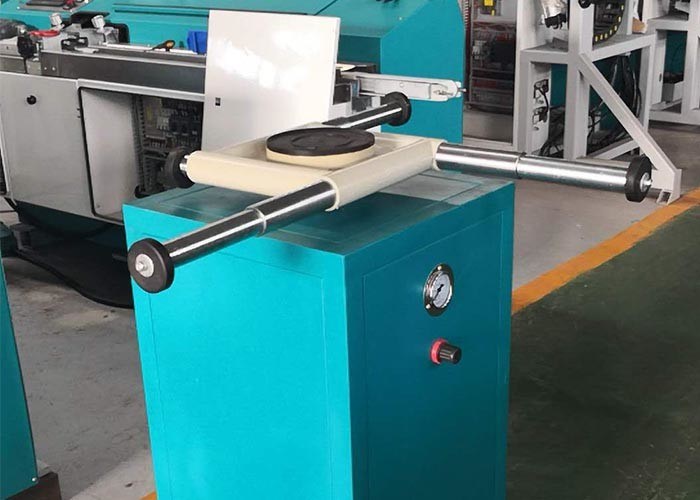

Rotated Sealant Spreading Table is used for fixing and rotating glass when manual coating the outside of IG glass.
Features :
1. The supporting arm can be adjusted based on glass dimension.
2.The support device is equipped with vacuum chuck. So no manual holding is needed on spreading.
3.Operators are capable to operate the foot switch for control the lifting and rotating of glass about the 0~90 degree rotation as to complete sealing of glass edge.
4.The machine is simple in operating procedures and high in working efficiency.
Advantage:
1.Easy to operate the positive reversal rotary structure.
2.Insulating glass of different types can be processed easily and conveniently.
3.The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
4.It is used for fixing and rotating glass when manual coating the outside of IG glass
Parameters:
Item. | Spec. |
Power supply | 380V 50Hz |
Total power | 0.37kw |
Operating dimension | 1500*1500mm |
Dimension | 600*550*985mm |
