Automatic Low-E Glass Film Removing Machine For Glass processing machinery

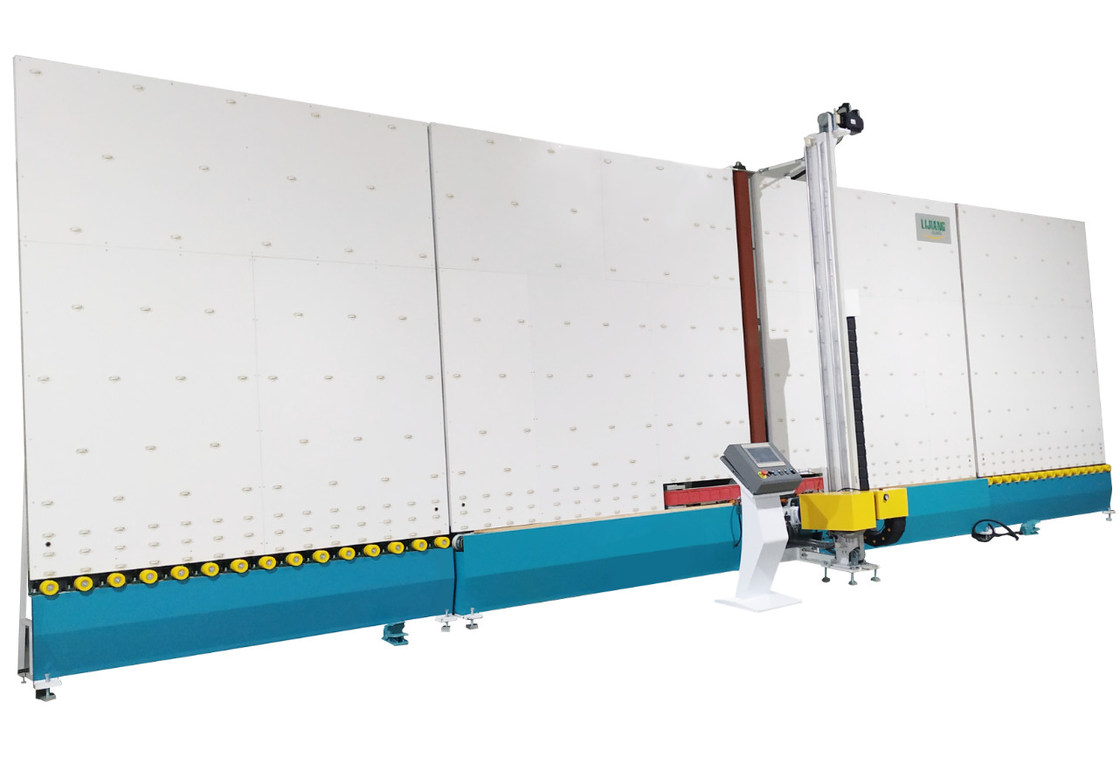

Product overview of vertical edge deleting machine

Automatic vertical edge deleting machine for making insulating glass is used to delete the film on the Low-e glass with fast speed,To prevent the film from oxidizing when the insulating glass is synthesized. Vertical Edge Deletion Machine can delete rectangle glass and shape glass, it has 6 servo motors.

Vertical edge deleting machine is divided into three sections, the first or the third section is 2.2 meters, mainly for glass input and output and storage of glass, the middle section 5.3 meters, mainly for film deletion.

Main feature of automatic Low-E glass deletion machine

• Automatically measure glass  size

• Inlet-outlet with two-direction ,4 directions are available

• PLC control system, touch screen interface

• Six servos control motors,British TRIO system

• Edge deletion is adjustable

• Automatically distinguish low-e surface

• The head can be rotated 360°

• Safe and full automatic device

• Intelligent control system, can recognize batch processing

• With our vertical film rdeletion machine can be connected to use, save labor, film removing effect is good, glass flatness is good, can be in addition to the large plate glass.

• Deleting shaped glass

• Recognize Low-E film Automatically

Technical parameters

Related Product

Automatic Desiccant Filling Machine LJGZ 2020A

Main feature

• Germany Siemens PLC control system

• Touching screen interface, simple and visible

• The height can be adjusted according to the size of spacer frame

• Automatically loading and replenish desiccant

• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Using big plastic barrel, save feeding time and improve efficiency

• Protection device for machine head

• Adopt vacuum pump loading device ,increase the loading speed

• Arc frame (optional)

• Fill large particle molecular sieve (Optional)

Technical data

Butyl Extruder Machine LJTB 01

Main feature of

• PLC control system, touch screen interface

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of glue

Technical data

Automatic Spacer Bar Bending Machine LJZW2020

Main feature of automatic bender for spacers

• Adopt Siemens PLC control system, touch screen interface

• Siemens servo control system

• Four spacer size storage units

• Automatically cut and feed aluminum spacers

• Auxiliary function of adjustment for bending large aluminum frame

• Aluminum spacers are available in different sizes and sizes

• Bend shaped spacer frames continuously

• Separated guard board outside of bender

• Automatically avoid the connection while bending and cutting

• Pause and Reset device for handling equipment failures

• USB input function, read the excel format file directly etc (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Can bend aluminum spacer and stainless steel ( Optional)

• Automatic drill gas filling hole (Optional)

• Connect to ERP system (Optional)

Technical data of auto spacer bending machine
