원래 장소:
중국
브랜드 이름:
LIJIANG GLASS
인증:
***
모델 번호:
2020
Automatical Desiccant Filling Machine for aluminum bar can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant.Automatic Molecular sieve Fillier Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant.

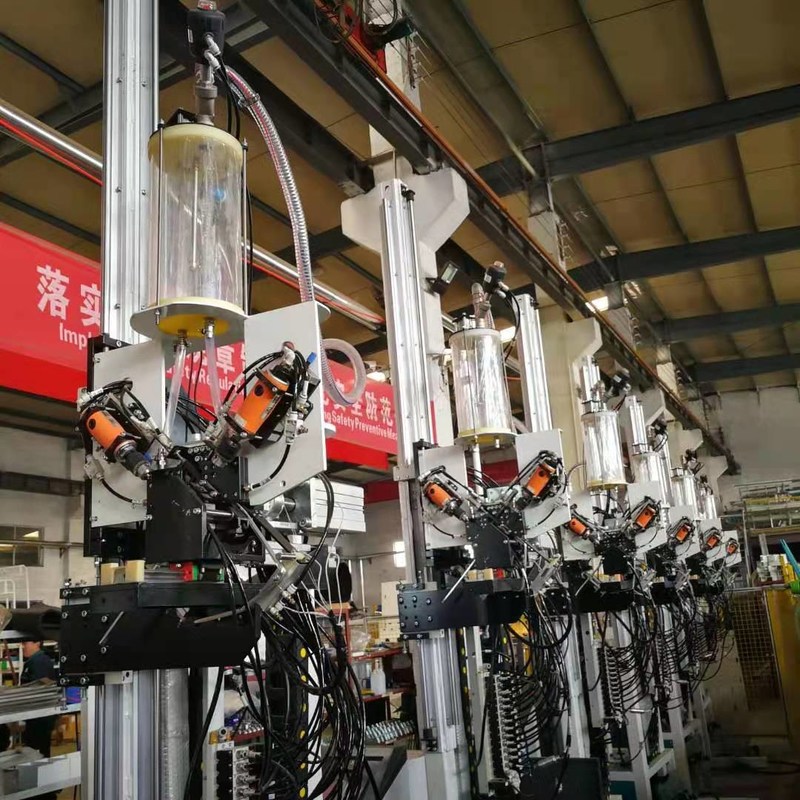

Detail of Desiccant Filling Machine
1.Electrical component are all Germany Brand-Siemens.
2. Auto drilling, filling and sealing function
3.Machine height can be adjusted according to the size of spacer frame
4.Protection device for machine head.
5.Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen
6.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
Main technical parameter of automatic desiccant filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
