Butyl extruder machine Insulating Glass Machine Stable performance of butyl rubber For Insulating Glass Glass Units

Butyl extruder can make primary sealing of different thickness spacer bars for insulated glass units.

Product overview of butyl rubber extruder machine

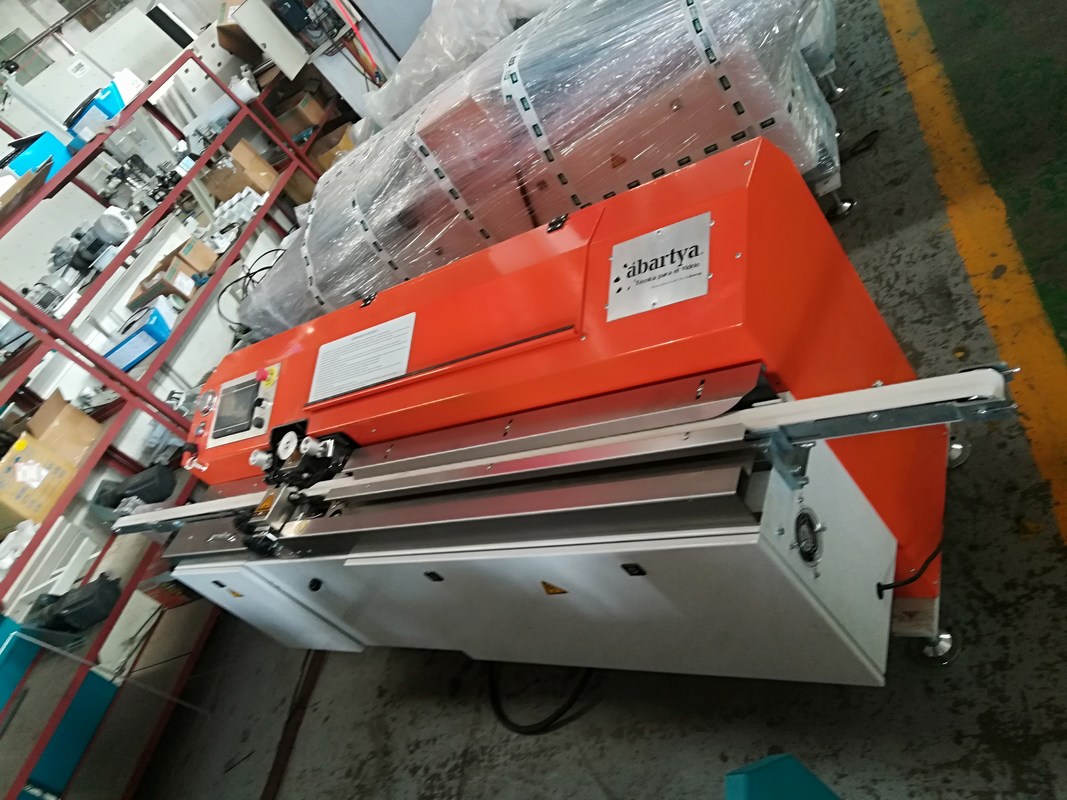

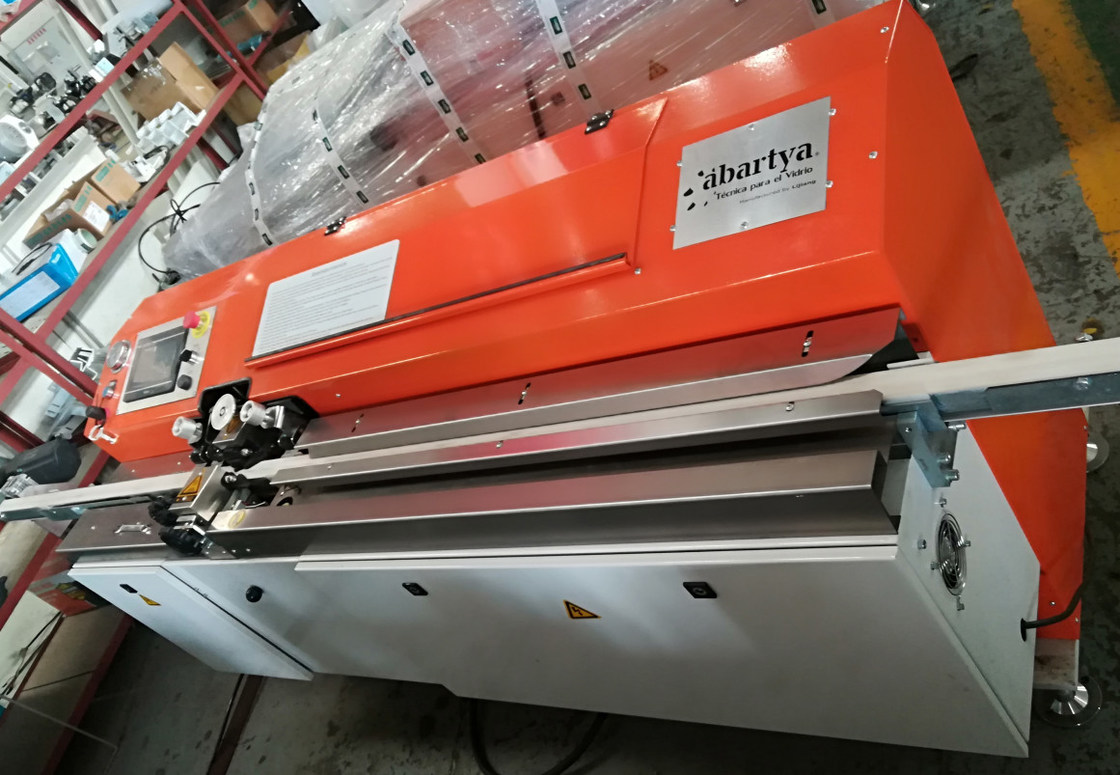

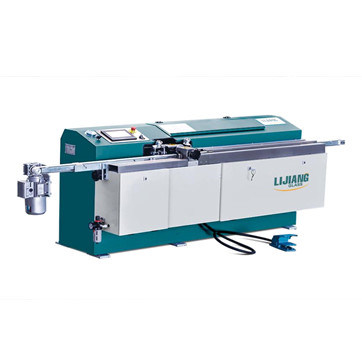

Butyl rubber extruders are used to spread the aluminum spacer frame evenly with hot melt butyl and are the second seal of double glazing. Butyl rubber extruders are easier to operate than before and use large electrical control panels. Adjusted from 0m / min to 47m / min. Butyl extruder LJTB01 is a special device for manufacturing double glazing. The aluminum conveyor is controlled by a frequency converter. As one of the important pieces of equipment for manufacturing double glazing, the effect of butyl adhesive is directly related to the sealing of double glazing. Butyl extruders are automatic, easy to operate, and easy to use.

The main feature of the butyl extrusion coating machine

1. Adopting a hydraulic system imported from Germany, supplies the adhesive uniformly and completely.

2. The main accessories are German brands. PLC program control, stable performance

3. Touch screen operation, simple and easy operation, stable performance

4. The rubber cylinder has a pull-up structure that is convenient for operation.

5. Adhesive is applied continuously by the unique design structure with automatic exhaust function.

6. Saves adhesive consumption compared to regular butyl rubber machines. The adhesive can reach 7g / m.

6. Automatically adjust the adhesive output as the speed changes

7. Adhesive application speed can reach 47m / min

8. It is useful to adjust the height of the cross beam to effectively and conveniently solve the white exposure problem.

9. Non-adhesive sync belt is used. No talcum powder is needed for cleaning.

10. Convenient and practical with movable vertical and horizontal sealants

11. Automatically adjusts the width of the adhesive head and integrated control of the quick open valve ensures consistent double-sided adhesion

Tech data of High-speed butyl extruder machine

Machine details of Aluminum spacer butyl extruder machine

1.KINCO Touch Screen

Clear interface, Simple operation, Smart touch screen,Updated programming

2.Adopt Germany Siemens brand, stable performance.

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

3.Automatic filter function

Automatically filter debris, keep spreading evently.

4.Glue cylinder

Adopt the upright structure, easy to change butyl.

5.Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

6.Alarm system

Automatically alarm system, reminding adding butyl.

7.Guiding Wheel

Using guiding wheel to help arc frames coating.

8.Germany Maximator Cylinder

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

Optional functions of butyl coating machine:

200L glue cylinder is optional
