제품 상세 정보:
|
| 기계 이름: | 고속도 부틸 압출기 기계 | 접착제 배럴: | 7개 kg |
|---|---|---|---|
| 작동 속도: | 47m/s | 난방 시간: | 15 이하 감독이 필요한 미성년자 |
| 접착제 간격: | 0.3-0.5MM | 접착제 폭: | 3.5 밀리미터 |
| 속도: | 0-47m/min | 보증: | 1년이요 |
| 차원: | 2800*700*900mm | 중량: | 750kg |
| 하이 라이트: | 47m/Minute Butyl Extruder Machine,7Kg Barrel Butyl Extruder Machine,47m/Minute hot melt butyl extruder |
||

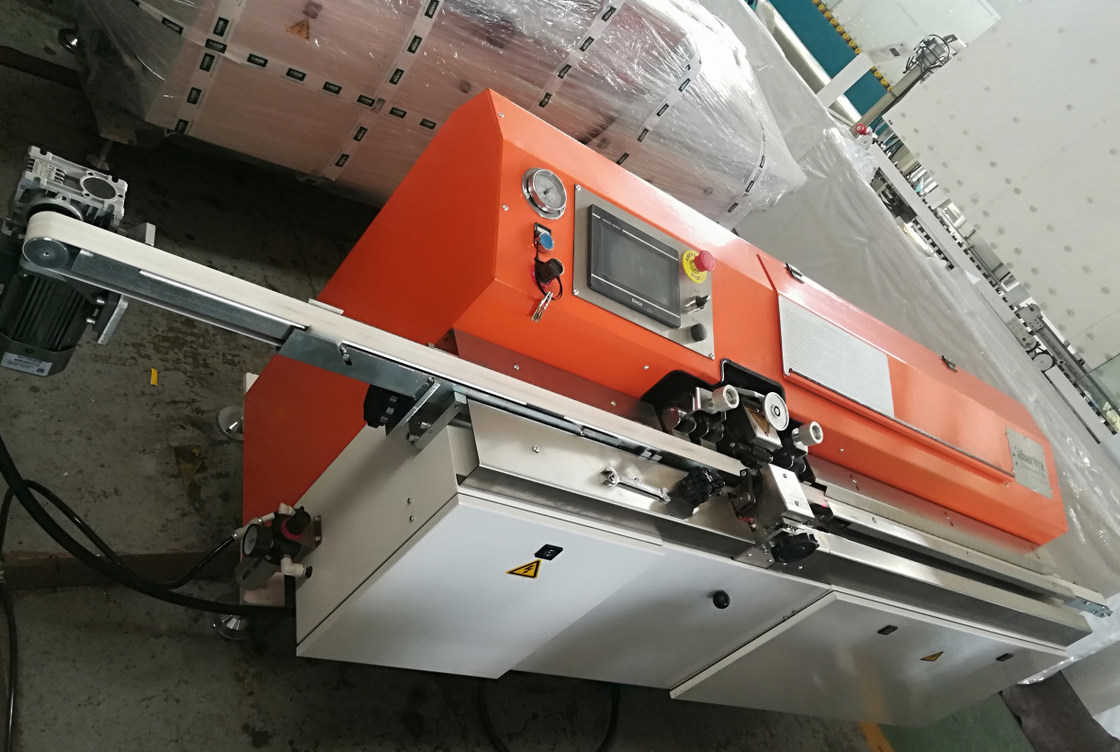

High Speed Automatic Butyl Extruder Machine With 7 Kg Butyl Barrel
High speed butyl extruder machine is a necessary equipment for manufacturing aluminum-frame type insulated glass, even it is necessary for Vertical insulating glass processing line.The butyl that be glued on the both side of aluminum frame by New butyl extruder machine, is the first sealant for insulating glass. So the quality of the butyl directly decides the quality of insulating glass and using life. Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.
In normal conditions, operator can independently finish gluing butyl on the two side of aluminum frame within the size of 2000 * 2000 mm. When the size is more than 2000 mm, should be done by two people. Assist operator should be away from the conveyor belt more than 200mm, in order to avoid the danger of clamping and involving in the belt.
High speed butyl extruder machine is controlled by program PLC, can automatic and exactly finish gluing function, operators only need to support the aluminum frames, others( clamping roller, transfer and etc) are automatic finished by setting program. This equipment is suitable for square, rectangular, shaped, arc and kinds of aluminum frames. Inner diameter of butyl cylinder is 200mm, maximum can load butyl of Φ195 * 250mm (7kg).
Transfer unit consists of frequency control motor, belts and belt pulleys. The range of running speed for belt is 5 ~ 47m / min; the height of beam can be adjusted by hand wheels, that locate in the left side of machine( see from picture 1.2), after adjusting to the properly height, please tighten front and back set screws. Structure of this part is simple and can be easily to adjust, it also has quickly transfer speed, stable and reliable to operate.
Main feature of high speed butyl extruder machine
• The coating glue speed can reach 47m/min
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Stable pressure and even coating
• Saving glue. The amount of glue on both sides can reach 4g / m
• Big glue barrel, 200L. (Optional)
Technical data of high speed butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Related product
Automatic Desiccant Filling Machine LJGZ 2020
Main feature
• Adopt Siemens PLC control system
• Touch screen interface, easy operation
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1100mm*1100mm*3600mm |
Aluminum frame transfer machine LJSKJ02
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
