Low E Film 15m/min Automatic Glass Grinding Machine For Deletion

Low E Film 15m/min Automatic Glass Grinding Machine For Deletion
Low E Film 15m/min Automatic Glass Grinding Machine For Deletion Low E Film 15m/min Automatic Glass Grinding Machine For Deletion

큰 이미지 :  Low E Film 15m/min Automatic Glass Grinding Machine For Deletion

제품 상세 정보:
원래 장소: 지난, 중국
브랜드 이름: LIJIANG GLASS
인증: CE
모델 번호: LJCM2545
결제 및 배송 조건:
최소 주문 수량: 1
가격: Negotiable
포장 세부 사항: 콘테이너
배달 시간: 40days
지불 조건: L/C (신용장), 전신환
공급 능력: 달 당 50 세트

Low E Film 15m/min Automatic Glass Grinding Machine For Deletion

설명
생산 기계: 자동적인 낮은 e 영화 삭제 기계 최대 유리제 크기: 2500mm*4500mm
최소한도 유리제 크기: 350mm*500mm 삭제 속도: 0 - 15m/min
삭제 폭: 10mm - 150mm 바퀴 크기: 10mm, 12mm, 15mm
애플리케이션: 가는 낮은 e 영화 가장자리 속도를 삭제하는 가장자리: 0-30m/min
하이 라이트:

15m/Min Automatic Glass Grinding Machine

,

150mm Automatic Glass Grinding Machine

,

15m/Min glass grinding equipment

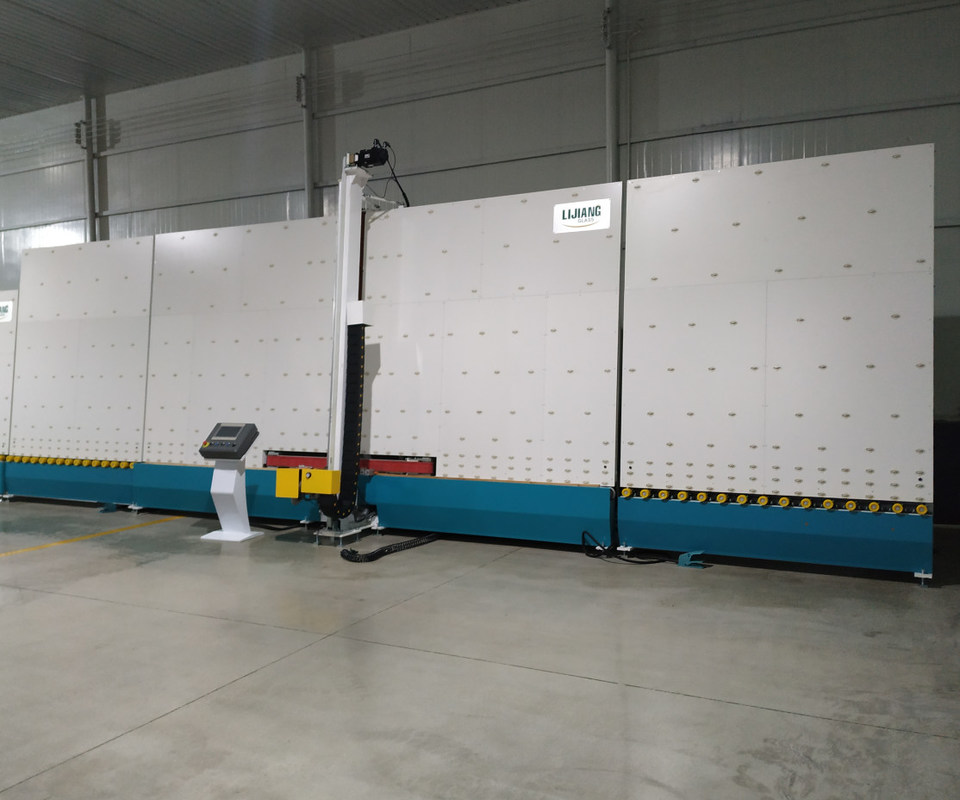

Automatic Low-E Glass Film Edge Grinding Machine For Deletion Of Low-E Film

Vertical Low-E glass film deletion machine for making double glazing glass is used to deleting the film on the low-e glass with fast speed. Automatic Low-E  deletion machine can delete rectangle glass and shape glass, it has 6 servo motors.

Main Features of Automatic Low-E deletion machine:

Six sets of servo motors,British TRIO system

Delete double and triple silver low-e glass

Automatically measure glass size

Automatically distinguish low-e surface

PLC control system, touch screen interface

Six servos control system

Intelligent control system, can recognize batch processing

Edge deletion is adjustable

The head can be rotated 360°Safe and full automatic device



Technical parameter



Max glass size  2500mm*4500mm
Min glass size  350mm*500mm
Wheels width  10mm, 12mm, 15mm
Deletion width  10mm - 150mm
Glass thickness  3-15mm

RFQ :

1. What is the function of Low-E film deletion machine?



Low-E film deletion machine is to remove the edge film of Low-e glass



2. Why should deleting  low-E glass film?



To prevent the film from oxidizing when the insulating glass is synthesized.



3. What glass needs to be deleted?



When off-line Low-e glass



4. In addition to using the vertical film deletion machine to delete film, what other ways can remove film?



Manual, horizontal edge grinding machine, bilateral edge grinding machine, four-edge edge grinding machine, cutting machine, etc



5. What are the advantages of using our film separator? What are the disadvantages? What are the advantages of using other methods? What are the disadvantages?



With our vertical film rdeletion machine can be connected to use, save labor, film removing effect is good, glass flatness is good, can be in addition to the large plate glass. Disadvantage is to increase the length of the whole line, cover a large area.

Manual film removal effect is poor, slow speed. The others are film removal before toughening, because the heating time of white glass and Low-e glass during toughening is not the same, it will cause glass deformation, advantage does not need too high investment.



6. Is glass before toughening divide film is good still after toughening divide film is good? Why is that?



After toughening, film removal is good, glass deformation is small.



7. What brand of PLC, servo motor driver, frequency converter is used to deletion machine?



At present, delta PLC servo motor and drive, inverter delta and schneider



8. How many sections does the film deletion machine divide into? What are the dimensions of each segment? What are the roles?



The film deletion machine is divided into three sections, the first or the third section is  2.2 meters, mainly for glass input and output and storage of glass, the middle section 5.3 meters, mainly for film deletion.



9. Can the device distinguish the low-e film surface?



The film layer can be detected automatically.



10. Do you need to input the length and width of the glass when using the film remover?



No, it's automatically detected.

Company Introduce :

Low E Film 15m/min Automatic Glass Grinding Machine For Deletion 0

Low E Film 15m/min Automatic Glass Grinding Machine For Deletion 1



Related Products



Vertical Insulating Glass Production Line LJBZ2535G

Low E Film 15m/min Automatic Glass Grinding Machine For Deletion 2



Main Features:

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional

Glass washing part



Main feature:

• Using 6 pieces of soft brushes

• Wash online and offline low-e glass, automatically recognizes Low-e film

• Washing part adopts the design of upper and lower layered structure

• Adopt variable frequency fan, energy efficient, good cleaning effect

• The air knife can automatically adjust the width of the air knife according to the thickness

• Using intelligent intermittent energy-saving working methods

• Hierarchical type washing system

• Water tank automatic temperature control, water replenishing system

• European silencer system

• 304 stainless steel materials



• Pressing and filling gas parts





Main feature:

• Ultra-long insulating glass can be compressed with second times

• The machine adopts servo torque to pressing glass

• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet

• Equipped with a precisely adjustable front platen mechanism

• The system can diagnose fault information

• The pressing plate can be opened to 400mm width for easy maintenance

• Applicable to produce four-side step IG, triple IG and shaped IG



  • Filling argon gas automatically

• Automatically filling argon gas inside the pressing plate with precise gas concentration

• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)

• No need to drill holes in spacer frame

• Standard gas is Argon gas

• Fast reacting sensor for permanent control of gas filling process

• Automatically set gas data and display data on the screen
