4 Racks Aluminum Spacer Bending Machine For Cutting Aluminum Bars

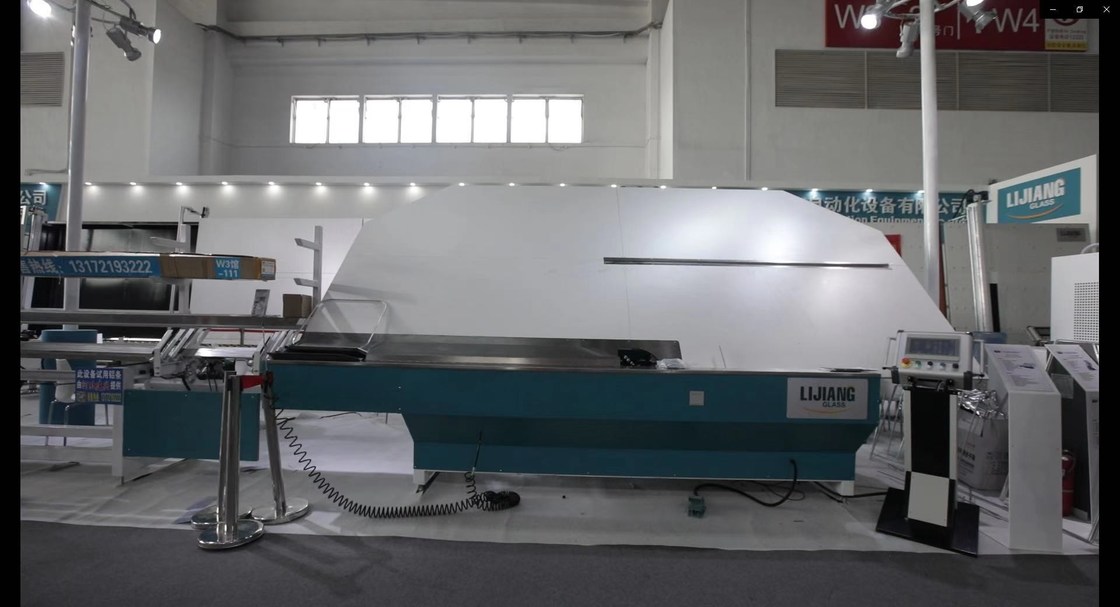

Automatic Aluminum Spacer Bending Machine for Cutting Aluminum Bars with 4 Racks

Automaticaluminum spacer bending machine is used to cut and bend spacer frame for the inner of insulating glass units. Automatic spacer bending machine is one of the auxiliary equipment for making insulating glass. Spacer bender has many optional functions. Such as printing label for spacer's datas,printing logo and date and so on. Also automatic spacer bending machine can bending stainless steel bars and warm edge spacer bars (plastic spacer bars).

Main feature of Automatic spacer bending machine:

• Adopt the control servo feeding system,spacer frame size can be adjusted with an accuracy of 0.1mm/m

• 4 groups of storages (2 or 12 groups of storages can be optional)

• Aluminum spacers are available in sizes of 5.5-26.5mm

• Siemens 1200 PLC control system with fast working speed

• Automatically avoid the pins while bending and cutting

• Bend spacer frames continuously

• Different bending tools for different sizes of spacers

• Pause and Reset device for handling equipment failures

• Bend aluminum spacer, smooth stainless steel, warm spacer

• Connect to ERP system (Optional)

• USB input function, read the excel format file directly

• Automatically drill holes for filling argon gas (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 5.5-26.5mm)

Different sizes of aluminum bars require different size tools (Optional)

Tech Parameters :

More details of the automatic spacer bending machine :

• The CNC servo feeding system.
• The bending speed is automatically adjusted according to the size of aluminum frame to avoid the deformation of large frame frame and ensure the high speed and continuous of small frame.
• Automatic connection of aluminum spacer bars and intelligent avoidance design of aluminum bar joint (avoid bending or cutting to the joint).
• The high-speed continuous production function, the operator only needs to ensure that there is material in the material trough and remove the folded aluminum frame from the bending machine (the machine has fault alarm function, which can display the fault location and cause), and the bending machine will stop automatically after processing to the set number.
• Dormant energy saving function and emergency stop protection.
• Except for start stop operation, all operations are completed on the touch screen, and the operation platform can be moved. Chinese operation interface, easy to operate, natural, easy to understand.
• The size datas of glass sheet with 4 specifications and 32 sizes (8 kinds of each specification) can be set. The machine can automatically calculate the aluminum frame data according to each size. Continuous processing can greatly improve the efficiency and speed.
• All functions can be manually operated to meet the needs of debugging and maintenance.
• Design of quick maintenance adjustment panel.
• The function of curved aluminum frame and special-shaped frame (unilateral, bilateral, trilateral, quadrilateral, hexagon, octagon, etc.)
• Output counting function, intelligent troubleshooting prompt.
•
• Online no material prompt, dormancy prompt, fault prompt, work prompt, no material in the process, automatic stop to wait for material, continue to complete the process flow after feeding.
• The rationality judgment function of aluminum frame data, unreasonable data refuse processing and prompt.
• The start-up system is fully automatic reset.
• Automatic cutting of aluminum frame is completed.
