Vertical Tempered Glass Double Glazing Production Line Similar As Lisec

Automatic Vertical Laminated Insulating Glass Double Glasing Production Line Similar as Lisec but Cheaper Hot Sale on March Expo

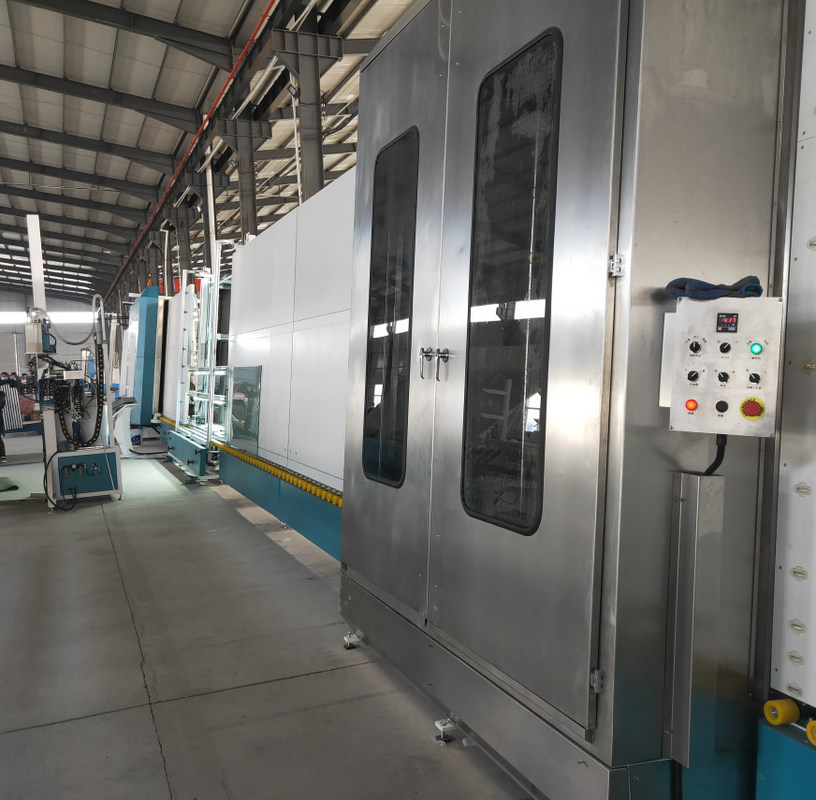

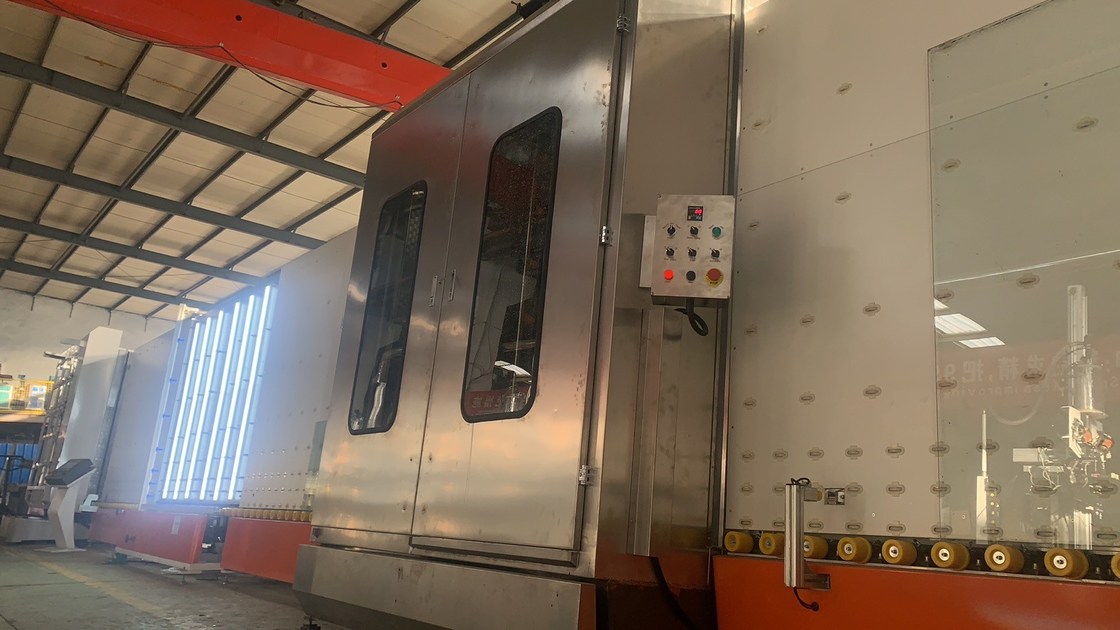

In this glass cleaning section, there are three pairs of soft brushes and four pairs of water spray for washing and drying glass. The air knife is float designed, which part always keeps the right and suitable distance between the glass and air knife in the press and design section. ( Entirely as same as the LISEC ) The transfer wheel from this section: The front and back transfer wheel is all-direction moved, all actively transferred. Whatever the glass size is big or small, it always guarantees the glass pass through smoothly. ( Entirely as same as the LISEC ) The axle and bearing of brushes adopt all stainless steel, which could keep the machine can washing stabilized and using for a long time. The whole drying machine uses a sound insulation design, which could reduce noise pollution effectively.

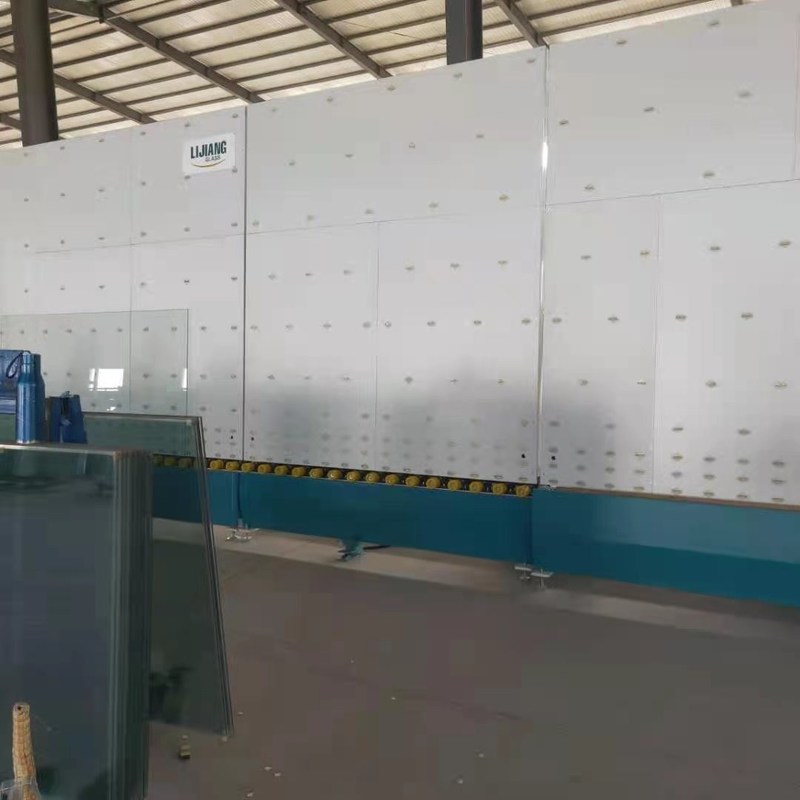

In this section, it could adopts online input the suitable gas proportion value, all the data could showed off on the touch screen, and during the gas filling processing, the touch screen can show off the whole gas filing process visually. However, how to show off the percentage of the argon gas filling on the touch screen online, is the importance technology on insulating glass producing. Jinan Lijiang Glass, which is the first and the only one manufactory, could master this technology very well from China. There is no doubt that it could be very useful for customers, when argon gas are filling, it will show off the whole processing on the screen. When it reach the customers setting data, It will alarm and stop immediately. So it not only can save the argon gas, but also can save the processing-time. By the way, the bottom of gas filling is our special structure.(Entirely as same as the structure of LISEC) Whole press and gas filling section are divided into five parts (per 750mm), when the small size glass (less than 750mm) pass through the pressing and gas filling section, only one part could work. When the difference size glass, which glass is more than 750mm but less than 1500mm, pass through the pressing and gas filling section, it will two parts work, no need the whole press and gas filling section work, to saving more the argon gas.

Adopt SIEMENS control system, keep stable performance PLC control system, touch screen interface Automatically adjust the depth of glue with digital display Using servo to control system, modular function, superposition function Applicable to produce stepped IG, triple IG and shaped IG Two pieces of IGU can be made and filled with argon gas in one time (Optional) Min & Max glass sizes can be optional European design concept, simple and smart operation; the world-famous brand of core components, ensure stable operation and long service life; It is designed for processing high quality glass, such as reflective glass, Low-E glass, reflective glass and tempered glass; Large glass processing size, various models and customization available; Large production capacity, output 1,000pcs in working days; It can be used for two-layer, three-layer, pad and glass with irregular shape; Automatic air gas filling during the glass paper assembly process.


Technical data




Jinan LIJIANG Glass, has own technician team, IG line and automatic sealing robot technician team have 6 experts which all have more than 15 years+ glass machine producing experience. Aluminum spacer bending and desiccant filling machine technician team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years, Service Team: Jinan LIJIANG Glass, has the own chinese domestic team and oversea service team. The whole team was included by 15 chinese engineers who worked in glass machine filed more than 20 years and 5 oversea engineers, two of them from india and others from south America and midle east. 24 hours online service and local engineer available, guarantee customers got timely service and solution .
