6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass

6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass

27A Aluminium Bar Bending Machine

6A Aluminium Bar Bending Machine

27A Spacer Bar Bender

원래 장소:

중국

브랜드 이름:

Lijiang

인증:

CE UL

모델 번호:

LJZW2020

문의하기
조회를 요청하다
제품 상세정보
이름:
알루미늄 간격 장치 구부리는 기계
최소한도 구부리는 크기:
150 * 300mm
알루미늄 간격 장치 폭:
6A-27A
구부리는 크기 과실:
±0.5mm
각 과실:
±1
공기 Suplier:
0.65Mpa
총 힘:
2.5KW
차원:
1000*2200*2600mm
MAX:
2000*2500mm
상태:
새롭습니다
강조하다:

27A Aluminium Bar Bending Machine

,

6A Aluminium Bar Bending Machine

,

27A Spacer Bar Bender

지불과 운송 용어
최소 주문 수량
교섭할 수 있습니다
가격
$29000 set
포장 세부 사항
나무상자
배달 시간
15 일
지불 조건
L/C (신용장), 전신환, 웨스턴 유니온, 머니그램, D/P (지급도 조건), 인수 인도
공급 능력
달 당 20개 세트
관련 제품
문의하기
86-0531-85960498
지금 접촉하세요
제품 설명

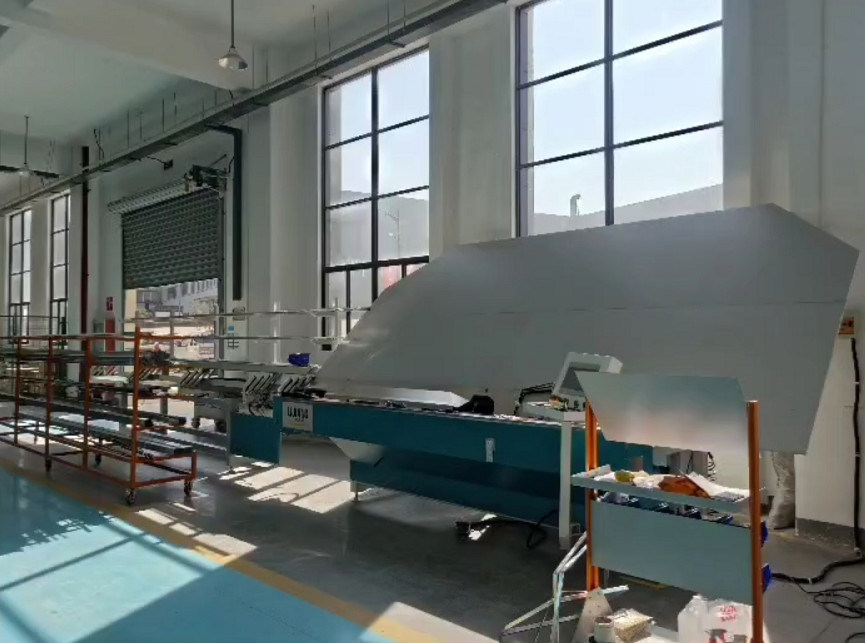

Automatic spacer bending machine LJZW2020

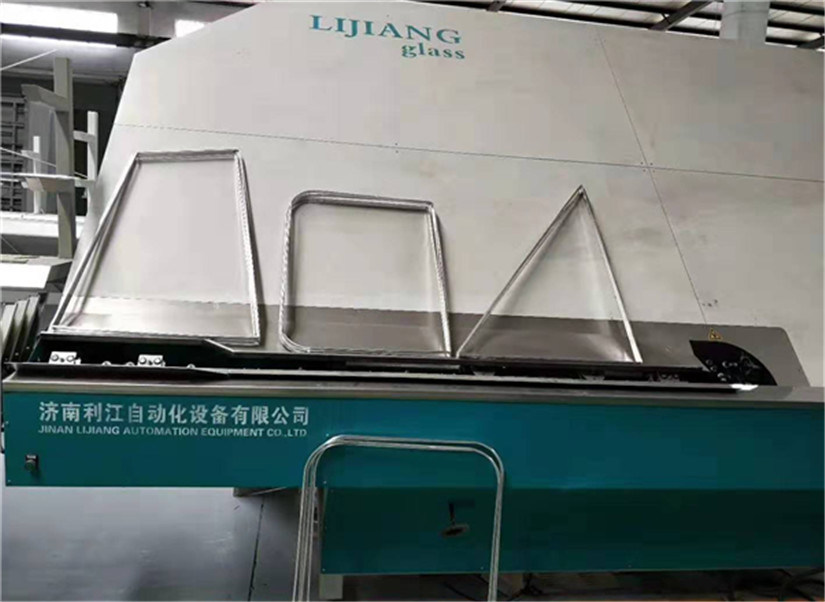

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.



Spacer Bending machine main components


NAME BRAND
PLC GERMAN SIEMENS
Low voltage electrical apparatus GERMAN SIEMENS
Servo motor GERMAN SIEMENS
Servo driver GERMAN SIEMENS
Relay JAPAN OMRON
Triplet Taiwan AIRTAC
Cylinder Taiwan AIRTAC
TOUCH SCREEN Taiwan WEINVIEW
Switch power Taiwan TEND
GUIDE Taiwan TBI
Solenoid valve Taiwan AIRTAC
Sensor KOREA AUTONICS


Main technical parameter


Max.bending size 2000mm*2000mm
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-24mm
Dimensional error: ≤±0.5mm
Angle error ≤±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm








6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 0




6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 1



Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!






6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 2

6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 3

6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 4







6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 5

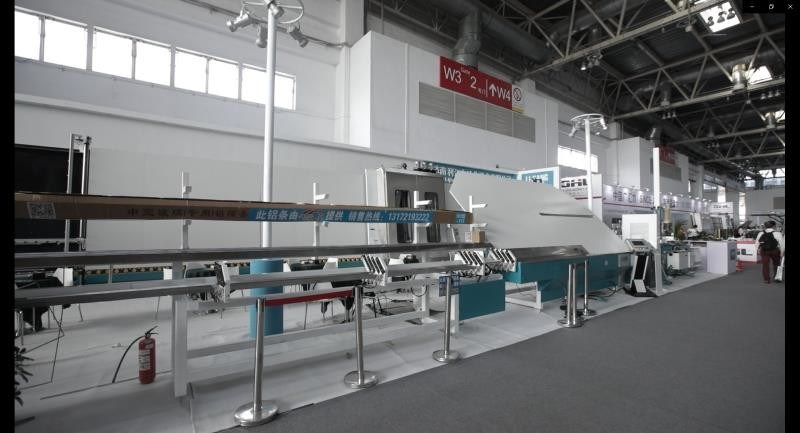

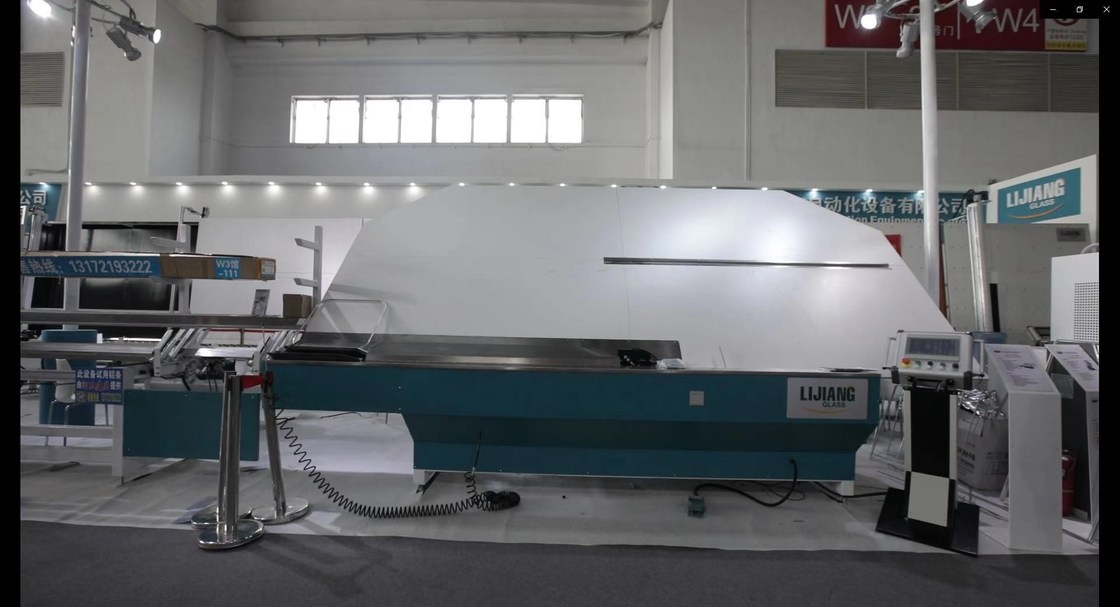

Glass Expo

International Glass Expo: Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa,Glass buildin in America, Mexico glass expo .Big Five In Dubai, Egpyt., and so on. Domestic Glass Expo: China glass , (Beijing/shanghai), Guangzhou.Glass Expo, and so on.

6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 6

6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 7



6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 8





6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 9





6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 10




6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 11
6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 12




Technician Team

Jinan LIJIANG Glass, has own technician team, IG line and automatic sealing robot technician team have 6 experts which all have more than 15 years+ glass machine producing experience. Aluminum spacer bending and desiccant filling machine technician team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years, Service Team: Jinan LIJIANG Glass, has the own chinese domestic team and oversea service team. The whole team was included by 15 chinese engineers who worked in glass machine filed more than 20 years and 5 oversea engineers, two of them from india and others from south America and midle east. 24 hours online service and local engineer available, guarantee customers got timely service and solution.





6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 13
6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 14



6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 15
6A-27A Aluminium Bar Bending Machine Spacer Bar Bender For Double Glass 16

JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated DGU Machines development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railway line, it’s very convent for transportation.

The company adheres to the “Hi-Q products”. We are striving to create the top-grade DGU Machines through setting up technology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China. Our DGU machines are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our DGU machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on.
At the same time, our company cooperates with scientific research institution, which is based on research and development center, imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glass production line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-grade level.
LIJIANG GLASS are goes into a leading way in the DGU mechanical field with the advanced technology, first-class products, perfect service and good reputation!
