제품 상세 정보:
|
| 이름: | 수직 격리 유리제 생산 라인 | 격리 유리제 간격: | 50mm/60mm |
|---|---|---|---|
| 유리 세척 속도: | 2-10m/min | 항공 보급: | 교류: 0.8m/min |
| 기압: | ≥0.8MPa | 총 힘: | 3P 380V 50HZ 40KW |
| 하이 라이트: | 60mm Insulating Glass Production Line,50mm Insulating Glass Production Line,50mm Double Glazing Glass Machine |
||

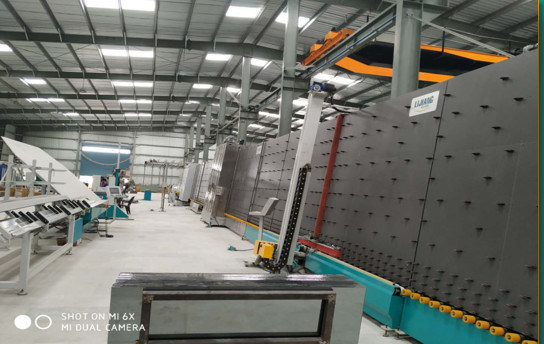

Vertical Insulating Glass Production Line LJBZ2535G
Main Features Of Glass Sealing Machine
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional

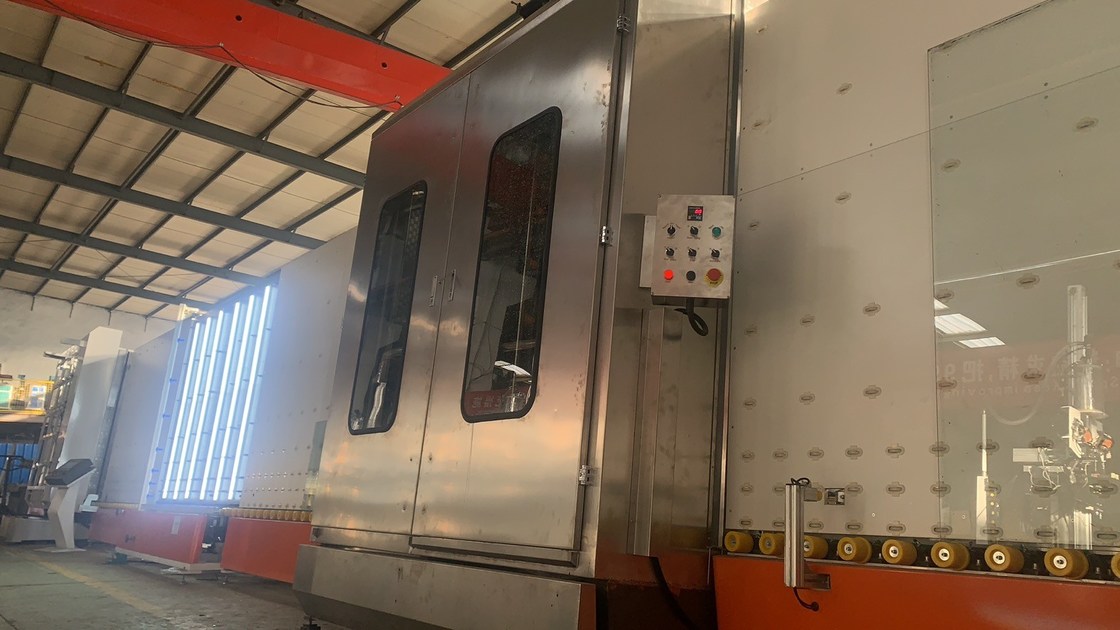

Main feature Of Insulated Glass Equipment
• Using 6 pieces of soft brushes
• Wash online and offline low-e glass, automatically recognizes Low-e film
• Washing part adopts the design of upper and lower layered structure
• Adopt variable frequency fan, energy efficient, good cleaning effect
• The air knife can automatically adjust the width of the air knife according to the thickness
• Using intelligent intermittent energy-saving working methods
• Hierarchical type washing system
• Water tank automatic temperature control, water replenishing system
• European silencer system
• 304 stainless steel materials
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Electrical parameters Of Automatic Temperature Control
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| IG line without filling gas online | ||
FAQ of washing machine production line
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support,
Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not
from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is
15-20 working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
