유리를 격리하는 전기적 제어 패널 스위스스아케르 속건성 접착제 부틸 압출기 기계

유리를 격리하는 전기적 제어 패널 스위스스아케르 속건성 접착제 부틸 압출기 기계

패널 스위스스아케르 부틸 압출기 기계

전기 제어 부틸 압출기 기계

패널 스위스스아케르 속건성 접착제 부틸 기계

원래 장소:

지난 시, 산동 지방, 중국

브랜드 이름:

Jinan Lijiang Glass Machinery

인증:

CE & ISO9000

모델 번호:

LJTB01 부틸 압출기 기계

문의하기
조회를 요청하다
제품 상세정보
전압:
380V 50Hz
상태:
새롭습니다
애프터 서비스는 제공되었습니다:
해외로 기계류를 서비스할 수 있는 엔지니어들
차원(l*w*h):
660*550*1100mm
중량:
500 킬로그램
전원(W):
3KW
기압:
0.6MPa
상품 이름:
유니폼을 코팅하는 부틸 공동 유리 가공기
보증:
12개월
이름:
2개의 접착제 노즐과 속건성 접착제 자동차 부틸 고무 방수제 기계
애플리케이션:
글라스를 격리하기 위한 코팅 부틸
색:
선택적입니다
용법:
이중 유리 생산
짜기 압력:
8-15Mpa
속도 전:
0-30m/min
힘:
3KW
강조하다:

패널 스위스스아케르 부틸 압출기 기계

,

전기 제어 부틸 압출기 기계

,

패널 스위스스아케르 속건성 접착제 부틸 기계

지불과 운송 용어
최소 주문 수량
1개 세트
가격
Discussible
포장 세부 사항
나무로 되는 케이스 포장
배달 시간
5-8 일로 일합니다
지불 조건
L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램
공급 능력
달 당 15 세트
제품 설명
electrical control panel Swisspacer hot melt Butyl Extruder Machine for double glass machine
Details display

Main feature


APPLICATION

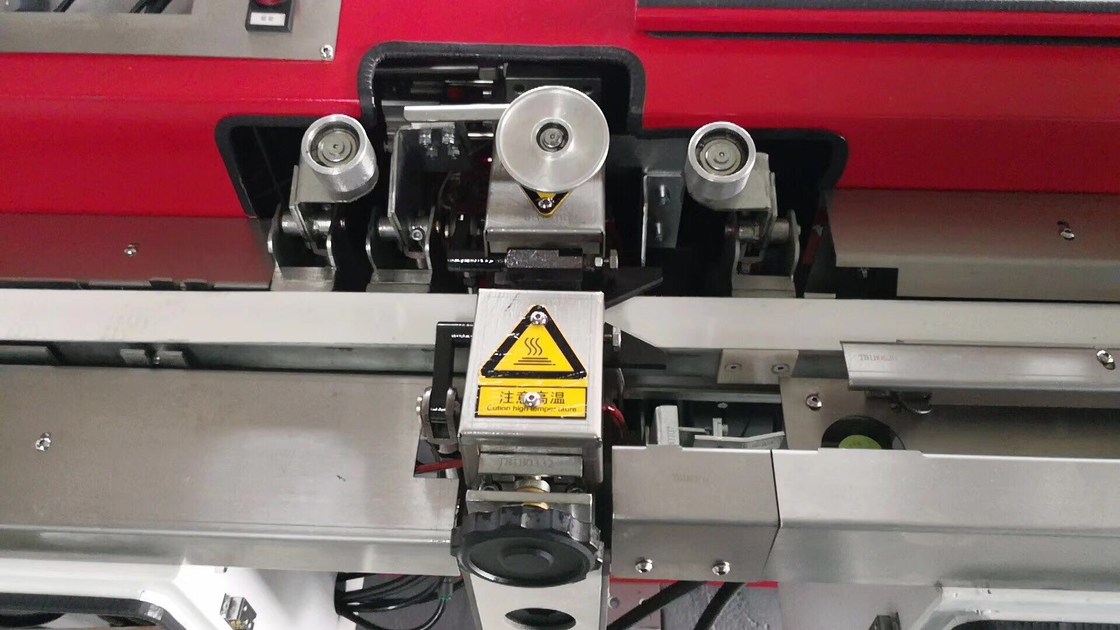

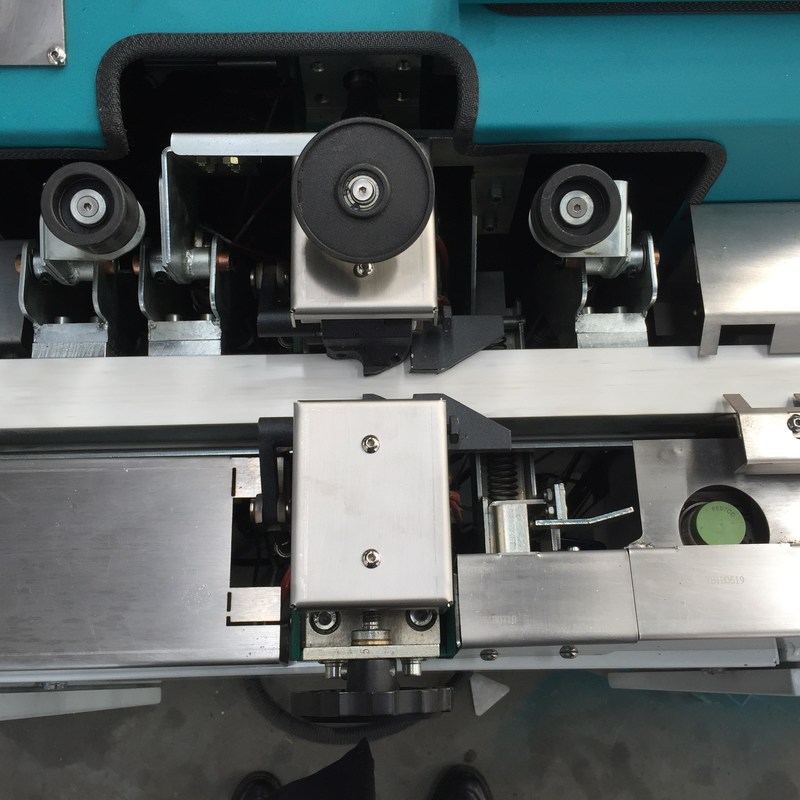

LJTB01 butyl extruder machine is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min. The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The machine is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
Main feature Touch-screen operation which makes the machine simple and practical Rectangle & arc frame , decorative aluminum fram can be coat Auto-measure the width of spacer, auto-adjust the distance of nozzle Auto-centering and auto clamping The wheel material is Teflon brand ,non-stick coating, non-adhesive belt The crossbeam height is easy to adjust,we can control the height of butyl Nuzzle height can be adjust, solve the gap between spacer and butyl The coating speed is up to 47m/min,save butyl is up to 30% (double side standard is 7-8g, our machine can do 4g thickness is 1-1.5mm ,width 3mm) Glue output and height is same level. Alarm device when use out of butyl Pre-heating function,set up a regular time before . Glue cylinder stands upside,easy to change glue Germany HAWEI brand pressure can up to 25MPa,The pressure is stable that can make the glue was coating evenly The front roller and the back rollerare used for rectangular frame, the Arc roller is used for circular frame. Electrical components are used famous 유리를 격리하는 전기적 제어 패널 스위스스아케르 속건성 접착제 부틸 압출기 기계 0brand Pneumatic and Hydralic supercharging pump -German Maximator brand control the pressure of outlet oil strongly. Pressure valve German HAWE brand with high pressure resistance, keep the butyl well proportioned Pneumatic component -Taiwan Airtac Relay Japan OMROM Japan quick-opening valve make sure the both sides of nozzle open and close at the same timeAPPLICATION


Coating speed
5-47m/min
Aluminum spacer size
4-30mm
Supply sealant pressure
<100kg/cm2
Power
5KW
Air source
≥0.6MPa
Dimension
2600mm*680mm*1100mm
volume of butyl approx.
7.5L






Name
Brand
Low voltage electrical apparatus
Germany SIEMENS
Hydraulic and pneumatic supercharging system
Germany MAXIMATOR
Pressure relief valve
Germany HAWE
Frequency converter
KINCO
PLC
KINCO
Pneumatic components(cylinder,valve)
ARTAC
Quick exhaust valve,Vacuum generator
Japan SMC
travel light
Japan OMRON

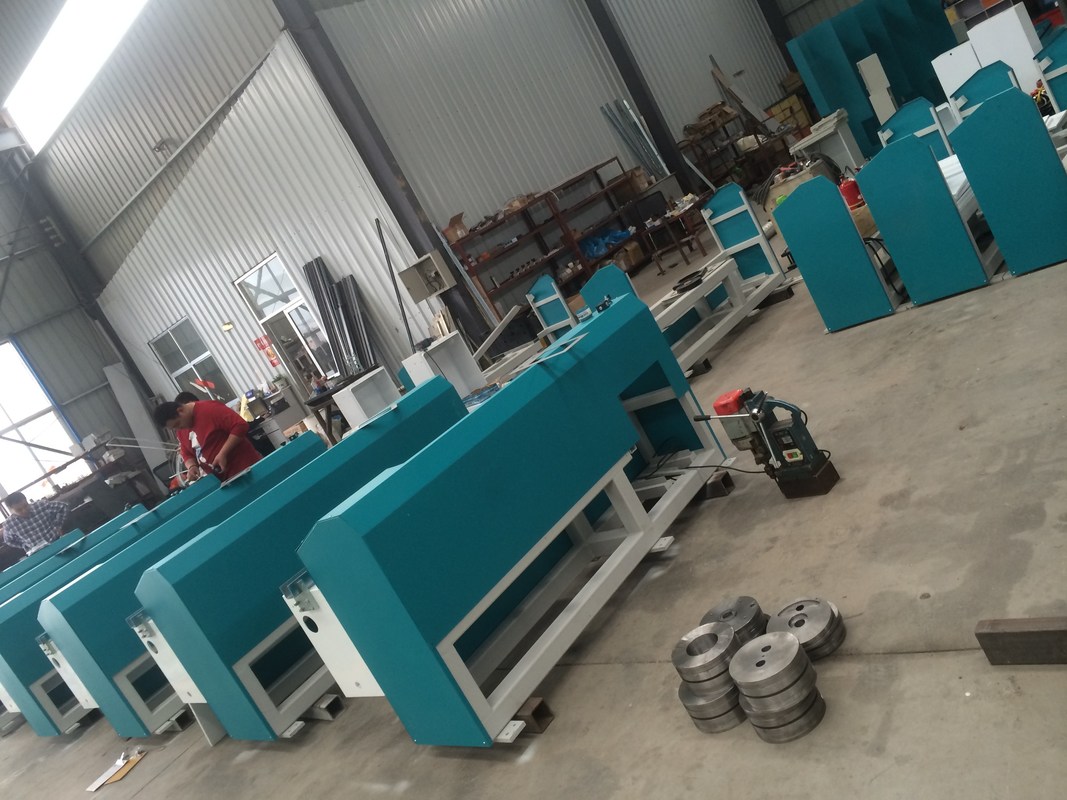

Factory display



Vertical Insulated Glass Produce Line for double glass production line Auto Sealing Robot for double glass production line Sealant Spreading Machine for double glass production line Low-E Glass Washing &Drying Machine for double glass production line Smart Edge Deleting Machine for double glass production line Automatic Spacer Bending Machine for double glass production line Automatic Desiccant Filling Machine for double glass production line Butyl Extruder Machine for double glass production line Glass Edge grinding Machine for double glass production line Spacer Cutting Machine for double glass production line Sealing gun Freezer for double glass production Rotated Sealant Spreading Table double glass sealing Argon Gas Filling Machine double glass Semi-auto Aluminum Frame Transfer Machine for double glass production line Molecular Sieve Filling Machine double glass production line Glass Lifting Table double glass production line Glass Loading /unloading Device for double glass production line Water Treatment System for double glass production line (Economy) Water Treatment System double glass production line (Advanced) Auto Seaming MachineVertical Insulated Glass Produce Line for double glass production line Auto Sealing Robot for double glass production line Sealant Spreading Machine for double glass production line Low-E Glass Washing &Drying Machine for double glass production line Smart Edge Deleting Machine for double glass production line Automatic Spacer Bending Machine for double glass production line Automatic Desiccant Filling Machine for double glass production line Butyl Extruder Machine for double glass production line Glass Edge grinding Machine for double glass production line Spacer Cutting Machine for double glass production line Sealing gun Freezer for double glass production Rotated Sealant Spreading Table double glass sealing Argon Gas Filling Machine double glass Semi-auto Aluminum Frame Transfer Machine for double glass production line Molecular Sieve Filling Machine double glass production line Glass Lifting Table double glass production line Glass Loading /unloading Device for double glass production line Water Treatment System for double glass production line (Economy) Water Treatment System double glass production line (Advanced) Auto Seaming Machine





National Expo

Glass Expo

Glass Expo National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt. Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.Glass Expo National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt. Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.





Certifications

Technician Team:

Technician Team: We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years, Technician Team: We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years,




Our service

Service Team:Service Team:

We have our own china domestic team and oversea service team . Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east. 24 hours online service and local engineer available , guarantee customers got timely service and solution .




Why Choose Us

Title goes here.

Advantages of Lijiang Products 1, we are producing all DGU machines : Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine 2, we have our own technician team and we got patent for the spacer bending machine and butyl extruder machine and desiccant filling machine and so on. For the Double Glazing Production line we have latest technology about pressing part and argon gas filling part . For the Automatic sealing robot , the mechanical head is in front of machine, it can achieve the real connection with Double Glazing production line when producing the step glass. For the Spacer bending machine, our machine can bend aluminum spacer and warm edge spacer ,and stainless steel, warm edge spacer need heating before bend, the corner error is acceptable range, we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service . for the butyl extruder machine , our best advantage is coating speed can up to 47m/min , it can save materials up to 30% compare with other brand(4-7g/m), we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service. Now we are making new design -Machine can connect with big Bucket glue 200L, it can save refilling the glue time. For the desiccant fillier machine , the biggest advantage is it can fill the rectangle and arc frame shape in one machine. For the manual gas filling machine, we can input the argon gas concentration into touch screen and it can display the whole gas filling processing, customer will know exactly how much argon gas filled inside. When it up to the value you input , argon gas filling machine will automatic stop and give us alarming.Advantages of Lijiang Products 1, we are producing all DGU machines : Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine 2, we have our own technician team and we got patent for the spacer bending machine and butyl extruder machine and desiccant filling machine and so on. For the Double Glazing Production line we have latest technology about pressing part and argon gas filling part . For the Automatic sealing robot , the mechanical head is in front of machine, it can achieve the real connection with Double Glazing production line when producing the step glass. For the Spacer bending machine, our machine can bend aluminum spacer and warm edge spacer ,and stainless steel, warm edge spacer need heating before bend, the corner error is acceptable range, we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service . for the butyl extruder machine , our best advantage is coating speed can up to 47m/min , it can save materials up to 30% compare with other brand(4-7g/m), we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service. Now we are making new design -Machine can connect with big Bucket glue 200L, it can save refilling the glue time. For the desiccant fillier machine , the biggest advantage is it can fill the rectangle and arc frame shape in one machine. For the manual gas filling machine, we can input the argon gas concentration into touch screen and it can display the whole gas filling processing, customer will know exactly how much argon gas filled inside. When it up to the value you input , argon gas filling machine will automatic stop and give us alarming.

About Us

Company Profile

JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated DGU Machines development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railway line, it’s very convent for transportation. The company adheres to the “Hi-Q products”. We are striving to create the top-grade DGU Machines through setting up technology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China. Our DGU machines are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our DGU machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on. At the same time, our company cooperates with scientific research institution, which is based on research and development center, imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glass production line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-grade level. LIJIANG GLASS are goes into a leading way in the DGU mechanical field with the advanced technology, first-class products, perfect service and good reputation!Company Profile JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated DGU Machines development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railway line, it’s very convent for transportation. The company adheres to the “Hi-Q products”. We are striving to create the top-grade DGU Machines through setting up technology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China. Our DGU machines are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our DGU machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on. At the same time, our company cooperates with scientific research institution, which is based on research and development center, imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glass production line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-grade level. LIJIANG GLASS are goes into a leading way in the DGU mechanical field with the advanced technology, first-class products, perfect service and good reputation!
