무의미한 유리 가공기에 글레이즈를 바르는 20.6KW 자동 두배

무의미한 유리 가공기가 두배로 유리모양이 됩니다

20.6KW 무의미한 유리 가공기

48m/min은 낮은 E 글래스 선을 격리했습니다

원래 장소:

지난 시, 산동 지방, 중국

브랜드 이름:

Jinan Lijiang Glass

인증:

CE & ISO9000

문의하기

조회를 요청하다

제품 상세정보

브랜드 이름:

Jinan lijiang Glass

힘:

20.6KW

중량:

3800kg

라인의 크기:

22000x1560x3380mm

전압:

380V 50Hz

가공 가능한 유리 유형:

2000x3300mm

유리 세척 속도:

2-10m/min

유리제 컨베이어 속도:

45m/min

강조하다:

무의미한 유리 가공기가 두배로 유리모양이 됩니다

20.6KW 무의미한 유리 가공기

48m/min은 낮은 E 글래스 선을 격리했습니다

지불과 운송 용어

최소 주문 수량

1개 세트

가격

협상 가능

포장 세부 사항

나무 상자

배달 시간

5-8 일로 일합니다

지불 조건

L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램

공급 능력

계속 30 근무일마다 10개 세트

자동 유리 3mm 수직 격리 유리 기계 IG 생산 라인

가장 좋은 가격 을 구하라

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

가장 좋은 가격 을 구하라

비디오

자동 절연 글래스 생산 라인 거대한 3300mm*7000mm 사이즈

가장 좋은 가격 을 구하라

세정과 레코드를 위한 겹창 유리넣기 두께 60 밀리미터 절연 글래스 생산 라인

가장 좋은 가격 을 구하라

문의하기

지금 접촉하세요

제품 설명

Automatic Double Glazing Hollow Glass Processing Machine / Insulated Low E Glass Processing Line

PRODUCTION PROCEDURE:

The coating and Low-E automatic distinguish system is installed on the input section

before washing. When the coating side is incorrectly put inside, the glass convey will be

automatically stop. On washing section, inverter control of brush for Low-E glass, oil-less

bearing, separate cabinet and water tank for two steps of washing and mist separation

the system is applied. Advanced static electricity releasing system is set at the exit of the washing

section (option).

The first glass after washing-drying and inspecting stop at the assembly machine and

position precisely by the X-Y axis. Put spacer frame manually and then the glass stay at

assembly section, which will be moved backward after the glass arrives at the position. At the

same time the second glass after washing-drying are waiting at the assembly machine for

positioning by guide bar. The panel reset and two pieces of glass are assembled and go

to press. When processing triple glass, the assembly section goes back again to let

the third glass comes in. The roller pushes 3 pieces of glass together and conveys the IG

units to press the machine for pressing.

After pressing, the IG unit is finished with the first seal and will be conveyed to the next

section for second sealing.

The whole glass movement (stop or convey) is automatically controlled by the PLC

system to reach high productivity and flexible control of the production procedure.

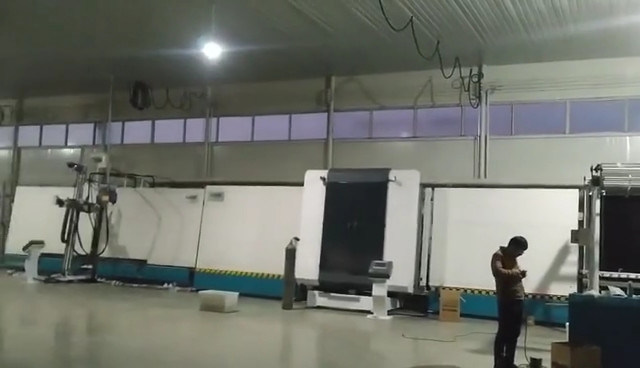

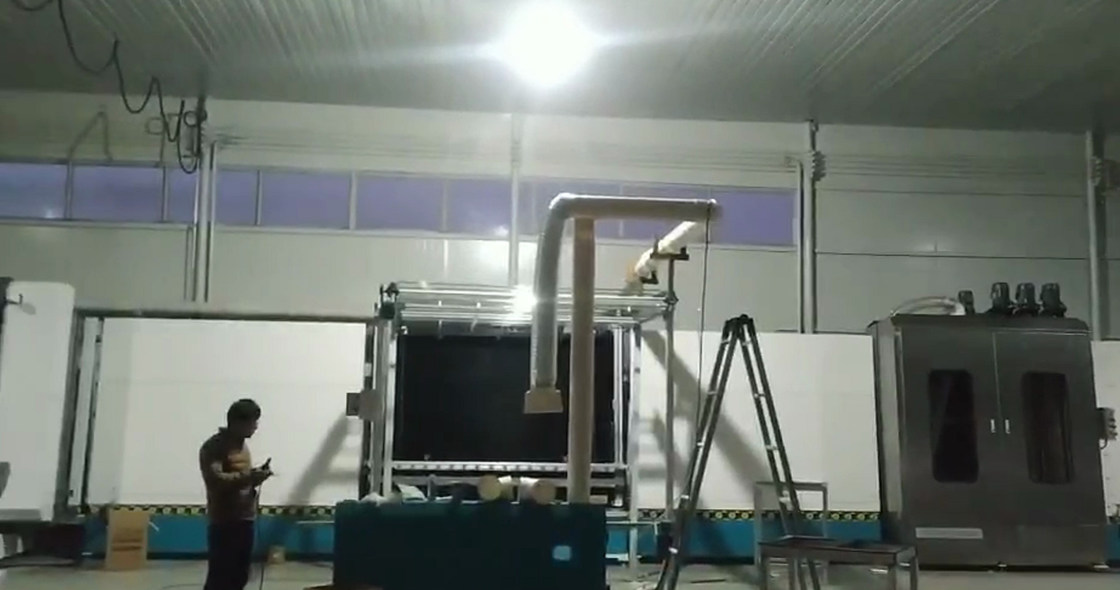

The whole insulating glass production line usually includes 7 parts:

(from right to left)

1, The Loading section(with Low-E checking)
2, The washing and drying section(can washing Low-E glass)
3, The conveyor section
4, The checking and assembly section
5, The conveyor measure, and the sensor section
6, The press part with gas filling
7, The unloading section.

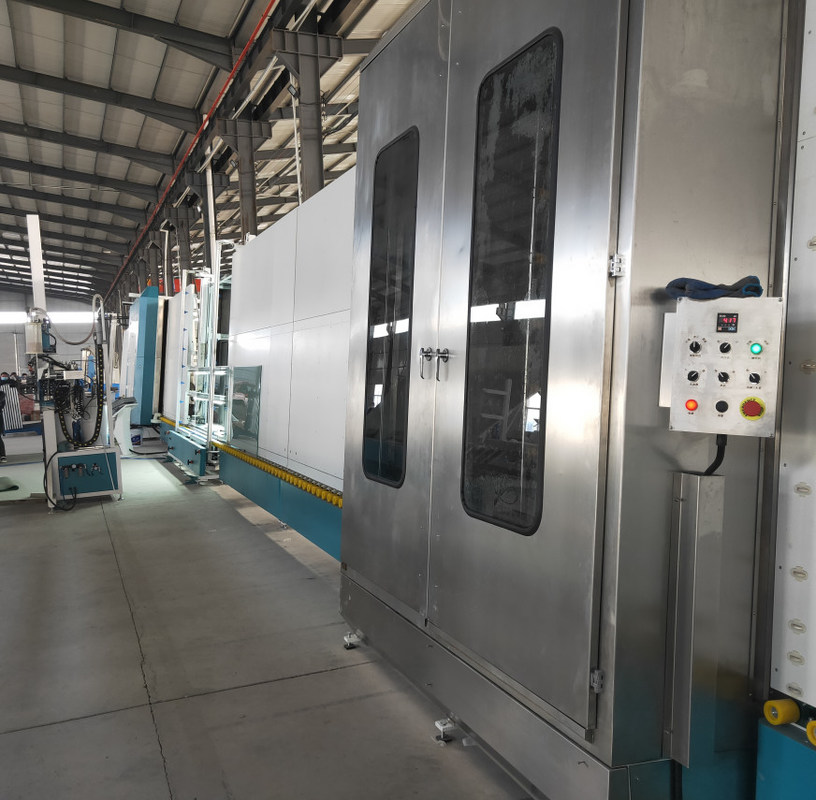

The second part: the washing and drying section.

In this glass cleaning section, there are three pairs of soft brushes and four pairs of water spray for washing and drying glass. The air knife is float designed, which part always keeps the right and suitable distance between the glass and air knife in the press and design section. ( Entirely as same as the LISEC ) The transfer wheel from this section: The front and back transfer wheel is all-direction moved, all actively transferred. Whatever the glass size is big or small, it always guarantees the glass pass through smoothly. ( Entirely as same as the LISEC ) The axle and bearing of brushes adopt all stainless steel, which could keep the machine can washing stabilized and using for a long time. The whole drying machine uses a sound insulation design, which could reduce noise pollution effectively.

The 6th parts: the pressing and gas filling section.

In this section, it could adopts online input the suitable gas proportion value, all the data could showed off on the touch screen, and during the gas filling processing, the touch screen can show off the whole gas filing process visually. However, how to show off the percentage of the argon gas filling on the touch screen online, is the importance of technology on insulating glass production. Jinan Lijiang Glass, which is the first and the only manufactory, could master this technology very well from China. There is no doubt that it could be very useful for customers, when argon gas is filling, it will show off the whole processing on the screen. When it reaches the customers setting data, It will alarm and stop immediately. So it not only can save the argon gas but also can save the processing-time. By the way, the bottom of the gas filling is our special structure. (Entirely as same as the structure of LISEC)  The whole press and gas filling section is divided into five parts (per 750mm), when the small size glass (less than 750mm) passes through the pressing and gas filling section, only one part could work. When the difference size glass, which glass is more than 750mm but less than 1500mm, passes through the pressing and gas filling section, it will two parts work, no need the whole press and gas filling section work, to saving more the argon gas.

Main Technical Parameter

Item.		Spec.
Dimension		1850035003600mm
Max.glass size		2500*3500mm
Min.glass size		300*500mm
Glass thickness		3-12mm
Insulating glass thickness		40mm
Glass washing speed		2-10m/min
Glass conveyor speed		45m/min
Washing brushes		3 pairs
Water supply		Water consumption: 0.5t/h conductivity: ≤50μs/cm
Air supply		Flow: 0.8m³/min
Air pressure		≥0.8MPa
