글라스 기계 분자 체 건조제를 격리하는 두배의 글레이징 유리 기계



(MOLECULAR SIEVE 0.5-0.9mm/1.0-1.5mm )





Main feature

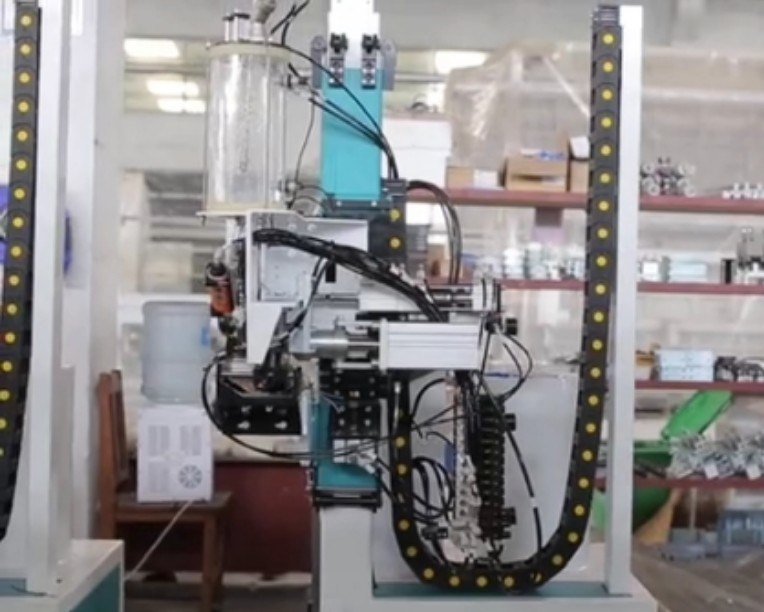

Fully automatic molecular sieve filling machine LJGZ2020 (back-perforated filling)
The automatic molecular sieve filling machine is a special equipment for the production of trough aluminum hollow glass. As an auxiliary equipment of the automatic aluminum frame bending machine, it can fill the aluminum frame with molecular sieve, with high degree of automation, simple operation and convenient use. (The appearance is subject to change without notice)
Main performance characteristics:
Siemens (SIEMENS) PLC program control, stable performance

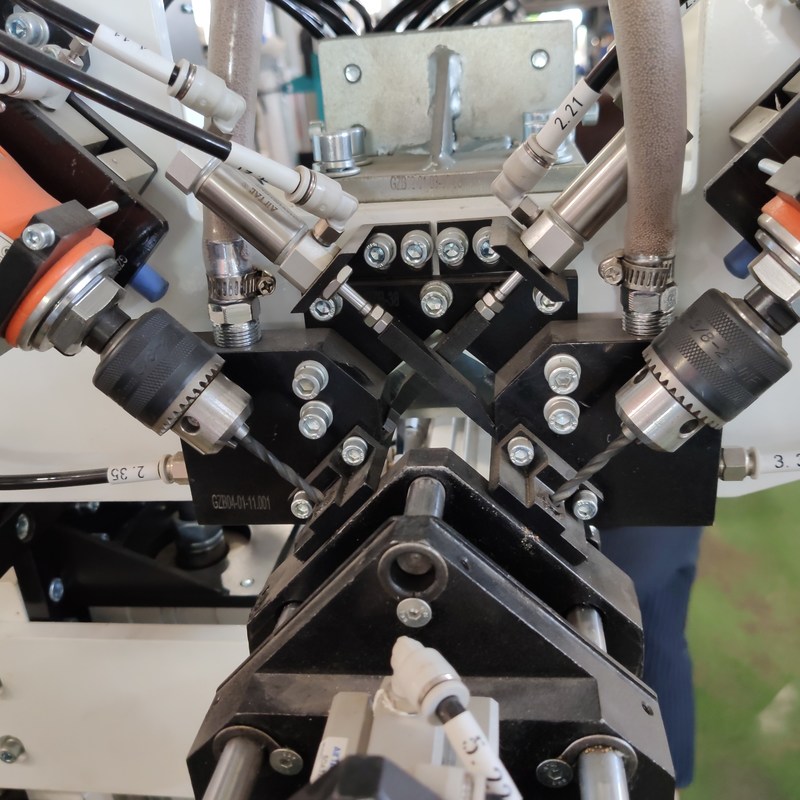

Perforate aluminum frame, fill molecular sieve, and seal with butyl rubber. Complete in one go.
The filling height can be adjusted arbitrarily according to the size of the aluminum bar
It has the function of automatic replenishment to prevent improper filling
Advanced feeding device designed according to the principle of gas flow
Industrial spray treatment of all racks,
The core control components adopt imported brands















Main technical parameter



Filling aluminum frame’s maximum size	2000mm*2000mm
Filling aluminum frame’s minimal size	300mm*250mm
Article aluminum specifications	5.5-24mm
Air source	≥0.65MPa
Power supply and power consumption	AC220V 50Hz 1.8KW
Molecular sieve diameter needed	0.5-0.9mm
Dimension	1300mm*1100mm*3650mm



Desiccant filling machine main component



name	brand
PLC	German SIEMENS
Low voltage electrical apparatus	German SIEMENS
sensor	Korea AUTONICS
guide	Taiwan TBI
triplet	TAIWAN AIRTAC
Solenoid valve	TAIWAN AIRTAC
Gas driller	Taiwan BOA
Switch power	Taiwan TEND



LJGZ2020A Automatic desiccant filling machine



Main feature



n The filling height of can be adjusted according to the size of spacer frame



n Filling time can be adjusted



n Desiccant auto loading and replenish



n Auto drilling, filling and sealing function



n Germany Siemens PLC control system



n Touching screen interface, simple and visible



n Adding glue way is safe and easy



n Machine can fill the arc frame.(optional function)



n Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function



n Big bucket desiccant ,save desiccant refill time ,improve the work efficiency (optional function)



n Protection device for machine head ((optional function)



n Adopt vacuum pump loading device ,increase the loading speed (optional function)





We have our own china domestic team and oversea service team .

Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.

24 hours online service and local engineer available , guarantee customers got timely service and solution .

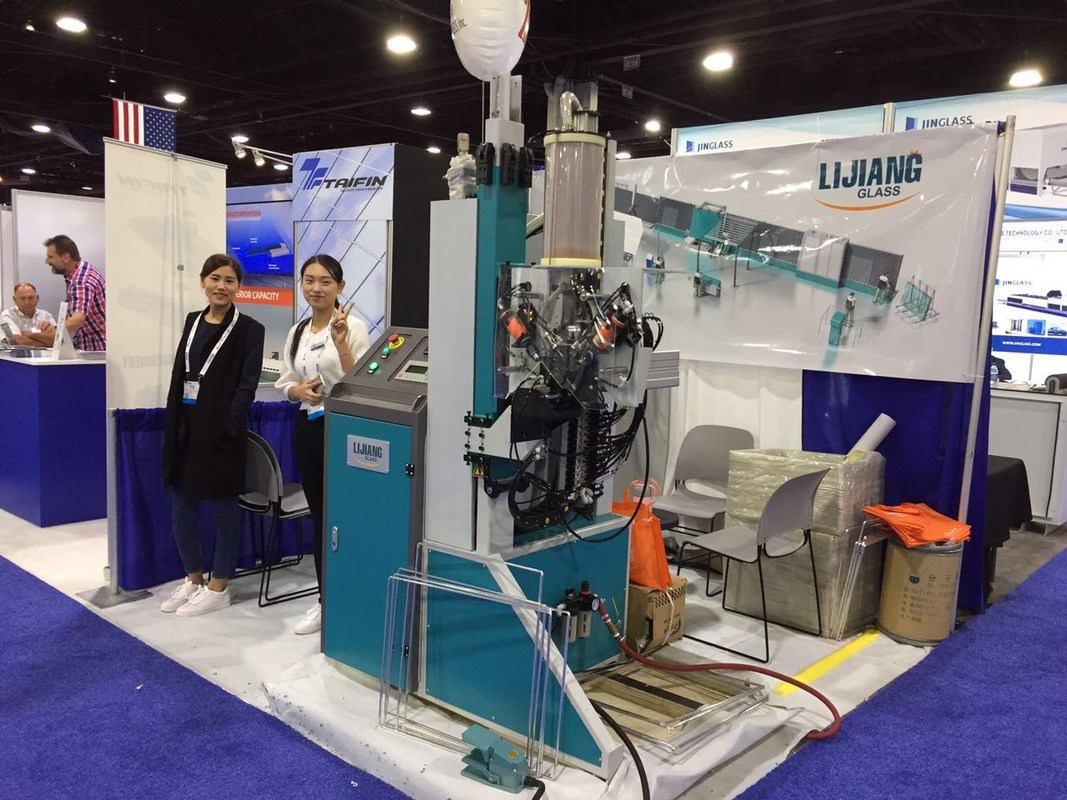

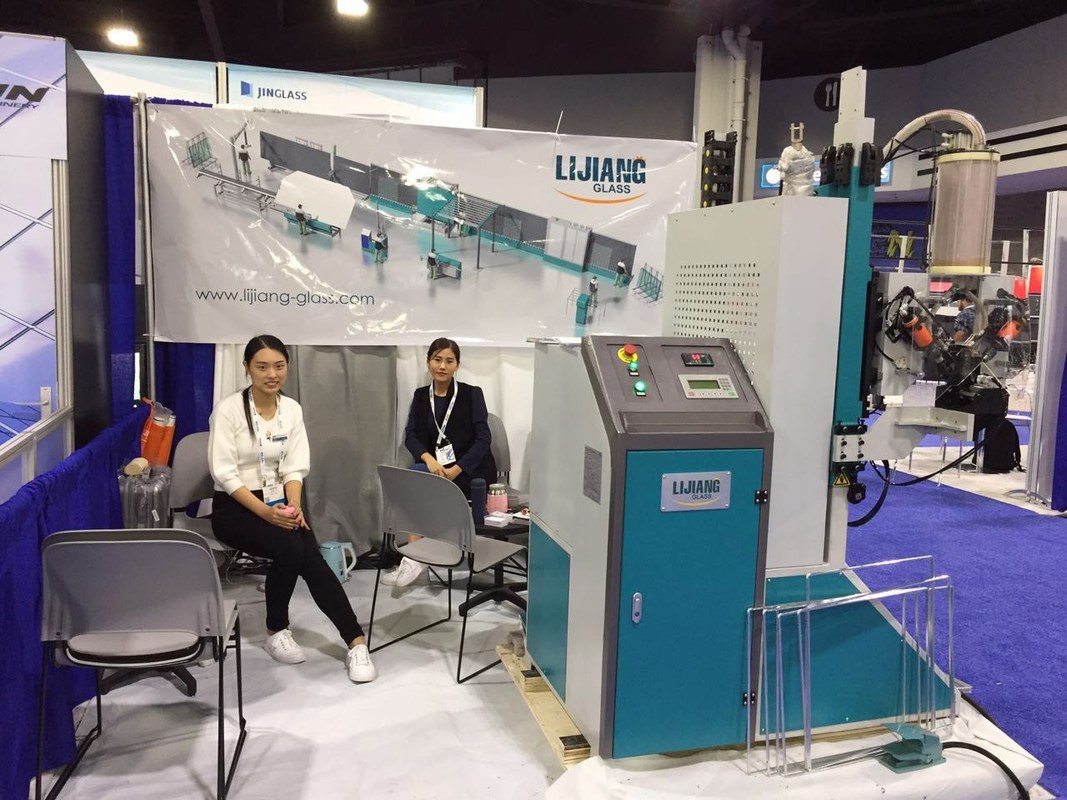

National Glass Expo

:Glasstec in Germany ,

CAM Eurasia Glass in Istanbul,

India Zak,

India Glasspro,

Glasstech Aisa ,

Glass build in America,

Mexico glass expo .

Big Five In Dubai,

Egpyt.

Domestic glass expo :

China glass , (Beijing /shanghai),

Guangzhou.

















Advantages of Lijiang Products



1, we are producing all DGU machines : Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine



2, we have our own technician team and we got patent for the spacer bending machine and butyl extruder machine and desiccant filling machine and so on.

For the Double Glazing Production line we have latest technology about pressing part and argon gas filling part .

For the Automatic sealing robot , the mechanical head is in front of machine, it can achieve the real connection with Double Glazing production line when producing the step glass.

For the Spacer bending machine, our machine can bend aluminum spacer and warm edge spacer ,and stainless steel, warm edge spacer need heating before bend, the corner error is acceptable range, we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service .

for the butyl extruder machine , our best advantage is coating speed can up to 47m/min , it can save materials up to 30% compare with other brand(4-7g/m), we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service. Now we are making new design -Machine can connect with big Bucket glue 200L, it can save refilling the glue time.

For the desiccant fillier machine , the biggest advantage is it can fill the rectangle and arc frame shape in one machine.

For the manual gas filling machine, we can input the argon gas concentration into touch screen and it can display the whole gas filling processing, customer will know exactly how much argon gas filled inside. When it up to the value you input , argon gas filling machine will automatic stop and give us alarming.

























Service Team:



We have our own china domestic team and oversea service team .

Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.

24 hours online service and local engineer available , guarantee customers got timely service and solution .













JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated DGU Machines development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railway line, it’s very convent for transportation.

The company adheres to the “Hi-Q products”. We are striving to create the top-grade DGU Machines through setting up technology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China. Our DGU machines are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our DGU machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on.

At the same time, our company cooperates with scientific research institution, which is based on research and development center, imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glass production line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-grade level.

LIJIANG GLASS are goes into a leading way in the DGU mechanical field with the advanced technology, first-class products, perfect service and good reputation!
