원래 장소:
중국
브랜드 이름:
Lijiang
인증:
CE
모델 번호:
LJZK 2535

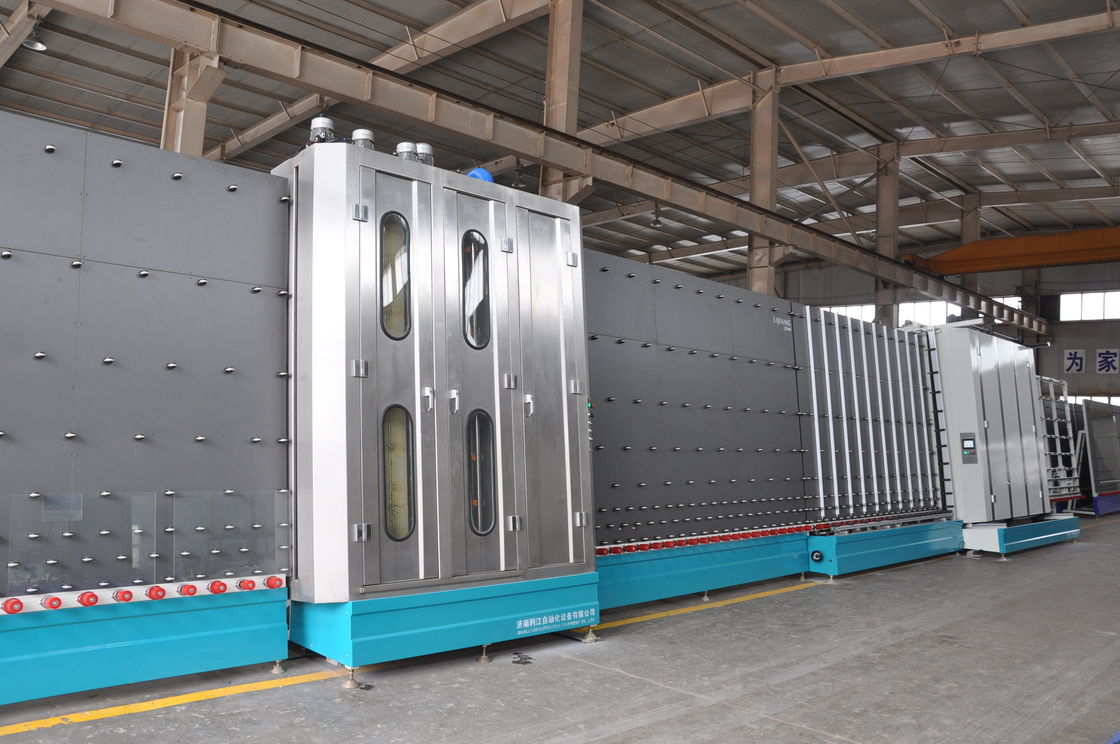

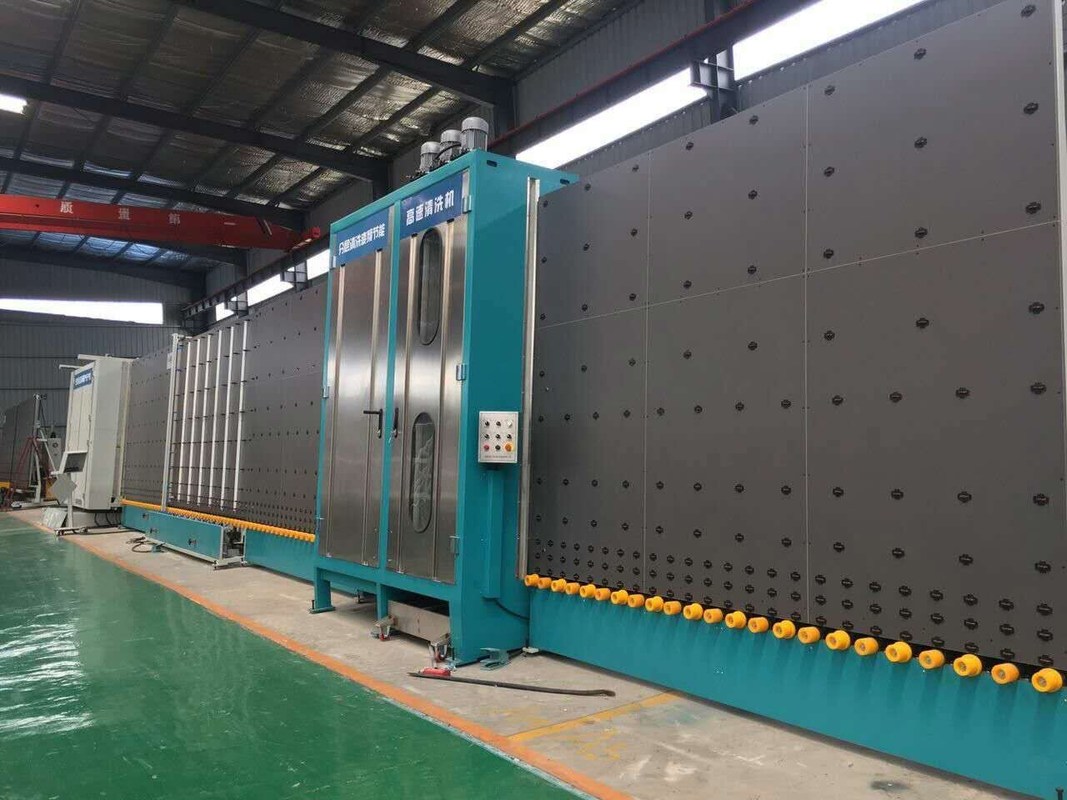

IGCC Reflective Tempered Insulating Architectural Glass Construction Building Glass Machine
The thermal insulation glass machine can perform the following functions: Glass cleaning, aluminum frame placement, normal double glazing, ordinary three glass, shaped glass and double second pressing glass.
The insulating glass machine is a special equipment in the production of insulating glass with aluminum strip, which has the advantage of a small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, convenient and intelligent operation;
2, world-famous key component brands, ensure stable operation and long service life;
3, for high quality glass processing, such as reflective glass, low E glass, tempered glass and laminated glass;
4, large glass processing scale, a variety of models and customization available;
5, high output capacity, 1000 pcs. Output per working day;
6, can be used for double-layer, three-layer, step sheet and unusually shaped insulating glass;
7, automatic argon air filling during glass sheet assembly;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
