부드러운 브러쉬 15 밀리미터 절연 글래스 생산 라인

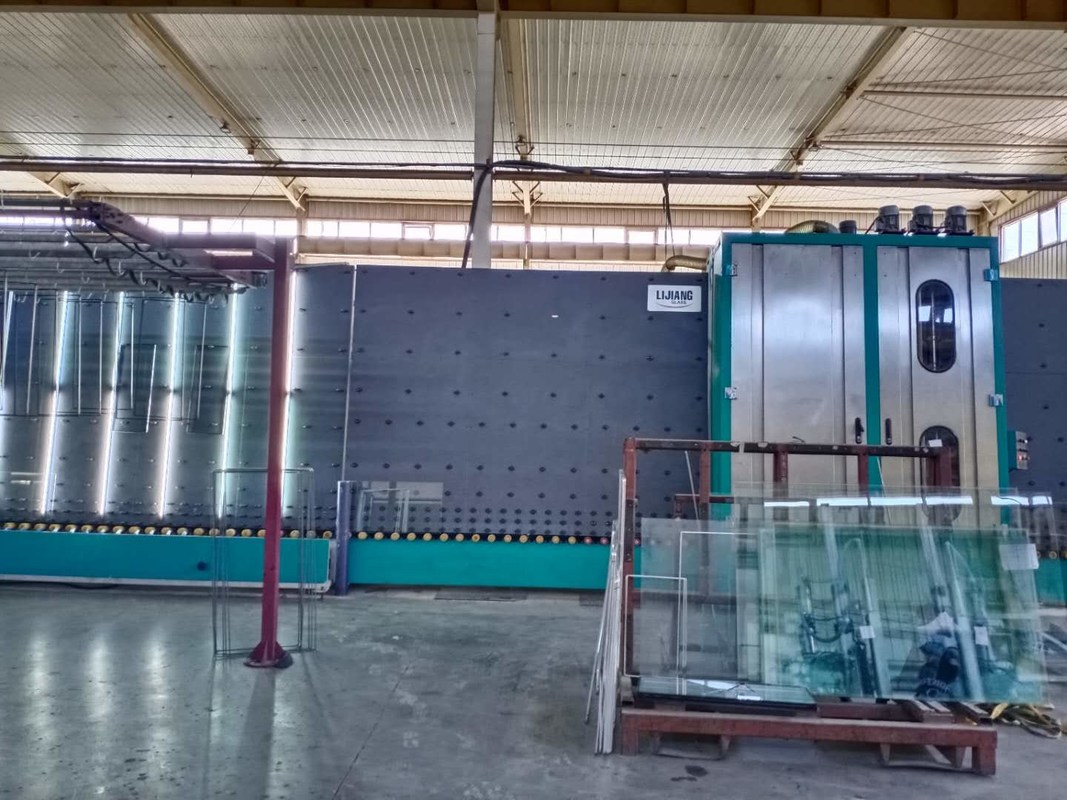

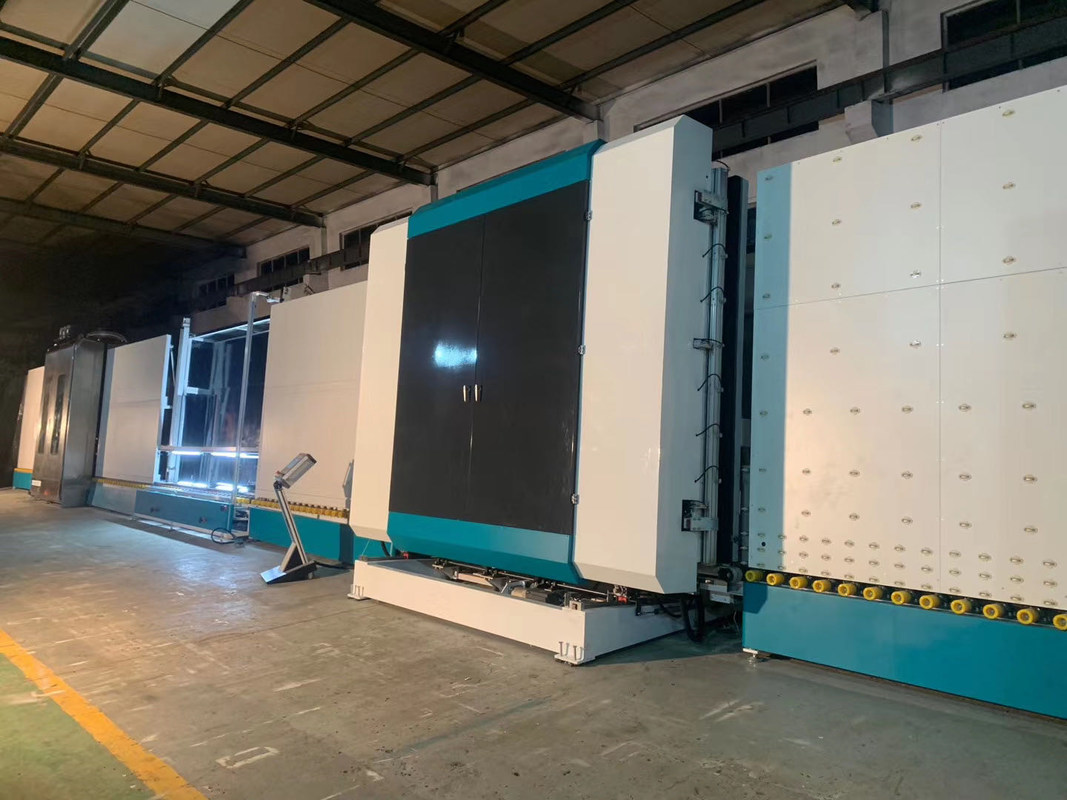

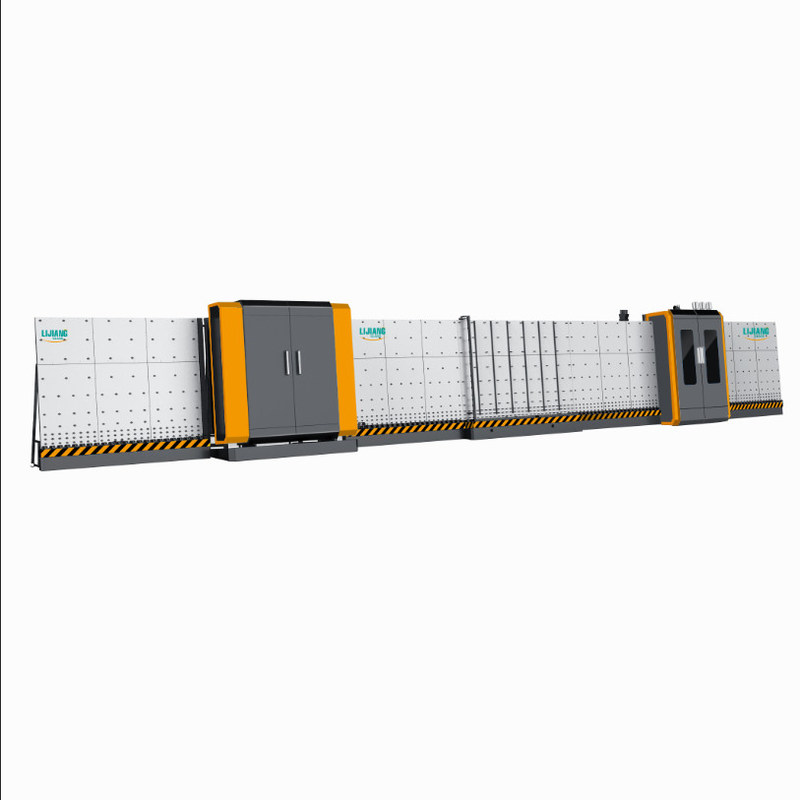

Vertical Insulating Glass Production Line Suitable for mass production in a factory, Ultra-fast speed.

Main Features:

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional

• Glass washing part

Main feature:

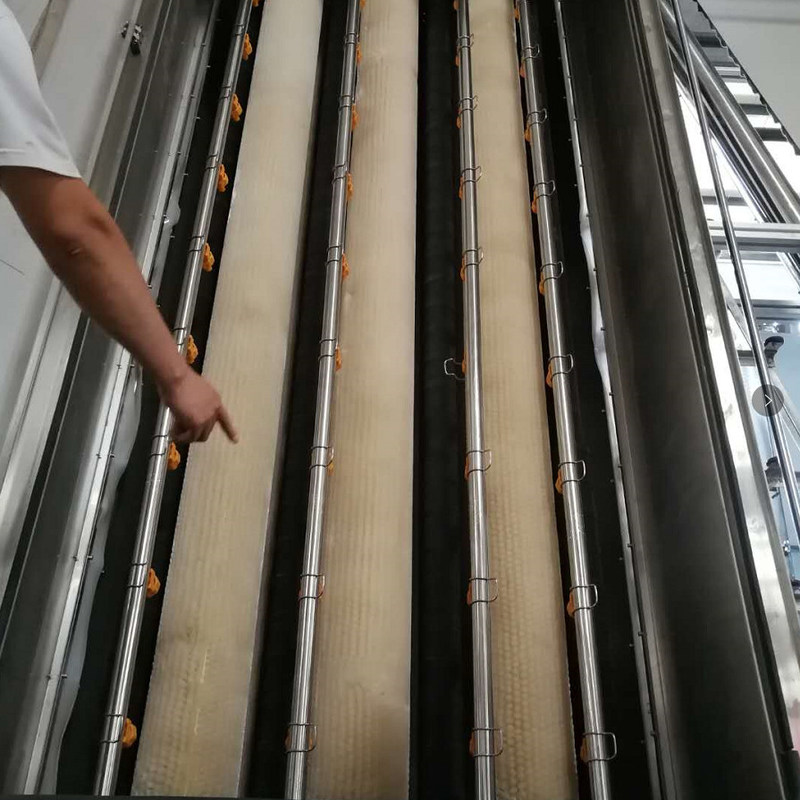

• Using 6 pieces of soft brushes

• Wash online and offline low-e glass, automatically recognizes Low-e film

• Washing part adopts the design of upper and lower layered structure

• Adopt variable frequency fan, energy efficient, good cleaning effect

• The air knife can automatically adjust the width of the air knife according to the thickness

• Using intelligent intermittent energy-saving working methods

• Hierarchical type washing system

• Water tank automatic temperature control, water replenishing system

• European silencer system

• 304 stainless steel materials

• Pressing 2 IG units(Optional)

Main Features

• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon

gas over 90%.

• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU

in once time.

• High-speed IG processing line

• Solving the problem of waiting for working on the sealing robot. Improve work efficiency highly.

• Installing two spacer frames for two IGU by one workman.

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and

after pressing) with ERP system.

• From transfer part to pressing part, each part is divided.

• Suitable for mass production in a factory, Ultra-fast speed.

Technical data

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring

city------Jinan. It is an enterprise which integrated glass processing equipment research and development,

sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very

convenient.

The company is committed to building high-end insulating glass machinery and equipment by learning from

famous experts, establishing the research and development centers, cooperating with domestic and foreign

well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North

Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other

well-known enterprises. Since the establishment of the company, our products have been exported to Europe,

America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time,

our company worked with the well-known domestic research institutes, such as the North China Industrial Group,

Shandong University and others, to constantly improve the level of technical research. So far, we have independently

produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic

spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine,

its technology and quality have reached the highest leading level in China.

With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win

situation and jointly creating a new world.
