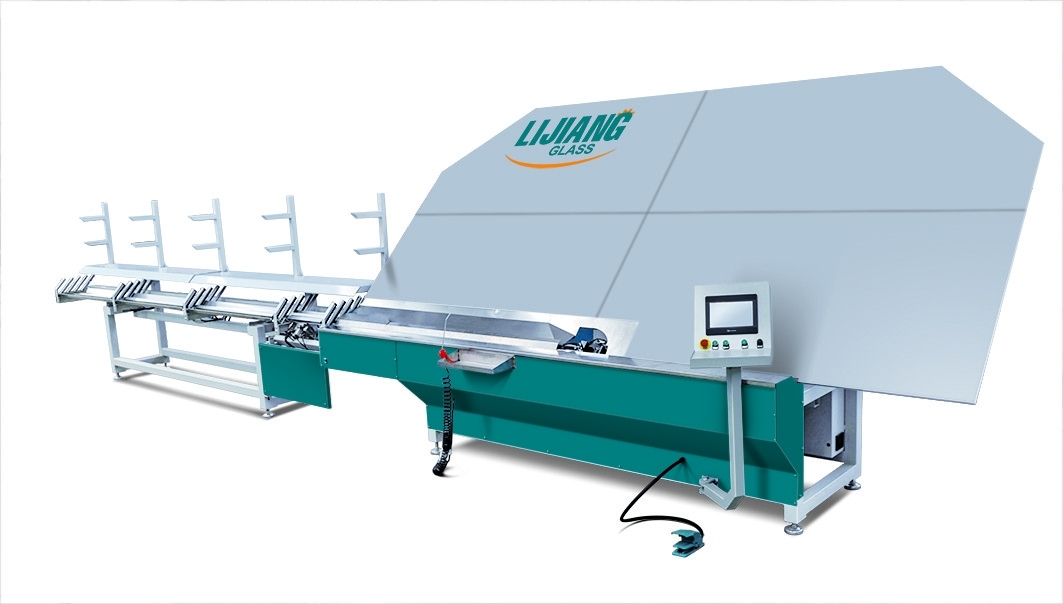

Aluminum Bars 6mm 27A Spacer Bending Machine

Full Automatic Spacer Bending Machine Cutting And Bending For Aluminum Spacer Bars

Main feature :
•Siemens 1200 PLC control system with fast working speed
•4 groups of storages (2 or 12 groups of storages can be optional)
•Automatically cut and feed aluminum spacers
•Automatically avoid the pins while bending and cutting
•Bend spacer frames continuously

•Aluminum spacers are available in sizes of 6A-27A
•Different bending tools for different sizes of spacers
•Pause and Reset device for handling equipment failures
•Bend aluminum spacer, smooth stainless steel, warm spacer

•Connect to ERP system (Optional)
•USB input function, read the excel format file directly
•Automatically drill holes for filling argon gas (Optional)
•Spacer printing code function (Optional)
•Printing label sticker function (Optional)
•Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)

Main performance features:

• Except for start stop operation, all operations are completed on the touch screen, and the operation platform can be moved. Chinese operation interface, easy to operate, natural, easy to understand.
• The size data of glass sheet with 4 specifications and 32 sizes (8 kinds of each specification) can be set. The equipment can automatically calculate the aluminum frame data according to each size and sort them. Continuous processing can greatly improve the efficiency and speed.
• The CNC servo feeding system is adopted, and the adjustable precision of aluminum frame size is 0.1M m/m
• The CNC bending angle control system is adopted, with adjustable accuracy of 0.1 °.
• The non tailing design can realize the zero head processing in addition to the cutting loss.
• The four automatic storage tanks can store 4 kinds of aluminum strip materials with length of 4-6m.
• It has the function of high-speed automatic continuous cutting of aluminum strip.
• The bending speed shall be adjusted automatically according to the size of aluminum frame to avoid deformation of large frame and ensure high-speed and continuous small frame.
• The aluminum strip is automatically connected, and the aluminum strip joint is designed with intelligent avoidance (to avoid bending or cutting to the joint part).
• The function of curved aluminum frame and special-shaped frame (unilateral, bilateral, trilateral, quadrilateral, hexagon, octagon, etc.)
• Output counting function, intelligent troubleshooting prompt.

• The high-speed continuous production function, the operator only needs to ensure that there is material in the material trough and remove the folded aluminum frame from the bending machine (the equipment has fault alarm function, which can display the fault location and cause), and the bending machine will stop automatically after processing to the set number.
• Dormant energy saving function and emergency stop protection.
• All functions can be manually operated to meet the needs of debugging and maintenance.
• Online no material prompt, dormancy prompt, fault prompt, work prompt, no material in the process, automatic stop to wait for material, continue to complete the process flow after feeding.
• The rationality judgment function of aluminum frame data, unreasonable data refuse processing and prompt.
• The start-up system is fully automatic reset.
• Automatic cutting of aluminum frame is completed.
• Design of quick maintenance and adjustment panel.

Parameters :
