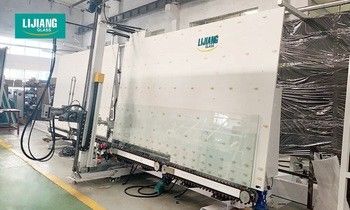

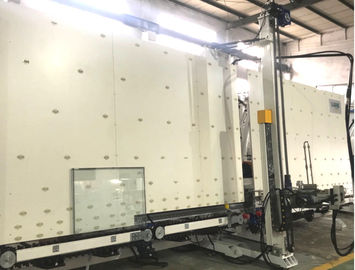

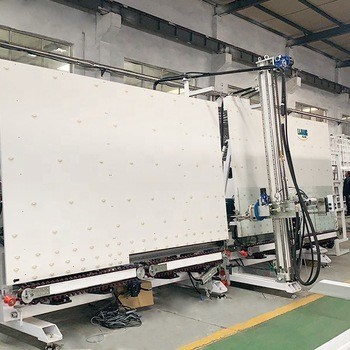

Vertical Insulating Glass Sealant 9° Silicone Sealing Robot

Vertical insulating glass sealant silicone sealing robot equipment

ALL THE IG PRODUCTS ARE 20% OFF ON MAY,2020

Application

Minimum and maximum glass size can be optional

8 servo motors adopted

Adopted Japan Yasukawa servo control system with stable performance

Linear adjustment automatically measures glass size, adhesive depth, and adhesive speed

Uses a timing belt to maintain smooth transportation at the correct position

Spares are produced with a high degree of standardization and precision to ensure that the machine can be used for long-term work

No bubbles in the glass corner, smooth surface, no need

Fully automatic high efficiency machine

New scraper design, especially for creating train IG with very uniform sides and corners without bubbles.

Automatically repairs beautiful glass corners

Smooth transportation without scratches or contamination

Single function parts are equipped with manual function, easy adjustment

Molded IG unit (optional)

4-sided IG unit (optional)

Double and triple IG units

One Set of Pump A & Pump B

Equipped with a single A component and a single B component. Glues A and B are automatically mixed and proportioned automatically. Equipped with two groups of A component and two groups of B component, it can be used for two different sealants, such as silicone rubber, polysulfide rubber, silicone structural rubber, etc. When the pressure increases, more glue B will automatically flow back, thus saving material.

Dyad Body Device

The dyad body device has two functions. The left side is used to filter impurities and water during gas injection, and the right side acts as a lubricant. Uses two suction cups to prevent glass from moving during sealing. Adopts Japan Yaskawa servo motor and controls the seal part by rotating 360°. You don't need to set the scraper blade to scrape off excess glue and repair the glass corner a second time. The time belt device allows the glass to be transmitted smoothly and positioned accurately. The glass and sensor adhesive can be automatically placed deep and the coating speed can be adjusted online. ..

 Stepped glass (Optional)

We put the machine head in the front, it will more convenient to making stepped IG units. It can connect with the IG line.

Equipped with MANUAL DEVICE

Every separate part is equipped with manual operation, be easy to adjust in case.The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.Every separate part is equipped with manual operation, be easy to adjust in case.We put the machine head in the front, it will more convenient to making stepped IG units. It can connect with the IG line.With the development of updating technology, the sealing robot can coat 8 shaped glasses according to the glass market.

²Technical data
