제품 상세 정보:
|
| 이름: | 자동적인 이중 유리를 끼우는 빈 유리제 가공 기계 | 전력 공급: | 380V, 50HZ 또는 주문을 받아서 만드는 |
|---|---|---|---|
| 신청: | 가구 유리, 건축 유리, 빈 유리 제조술 기계, 훈장 유리 | 공기의 압력: | 0.5~0.8Mpa |
| 최대. 유리제 크기: | 2000*2500mm | 사소 유리제 크기: | 300x400mm |
| 조건: | 새로운 | ||
| 하이 라이트: | 2000×2500mm 무의미한 유리 가공기,두배 무의미한 유리 가공기,2000×2500mm 유리 가공 기계류 |
||

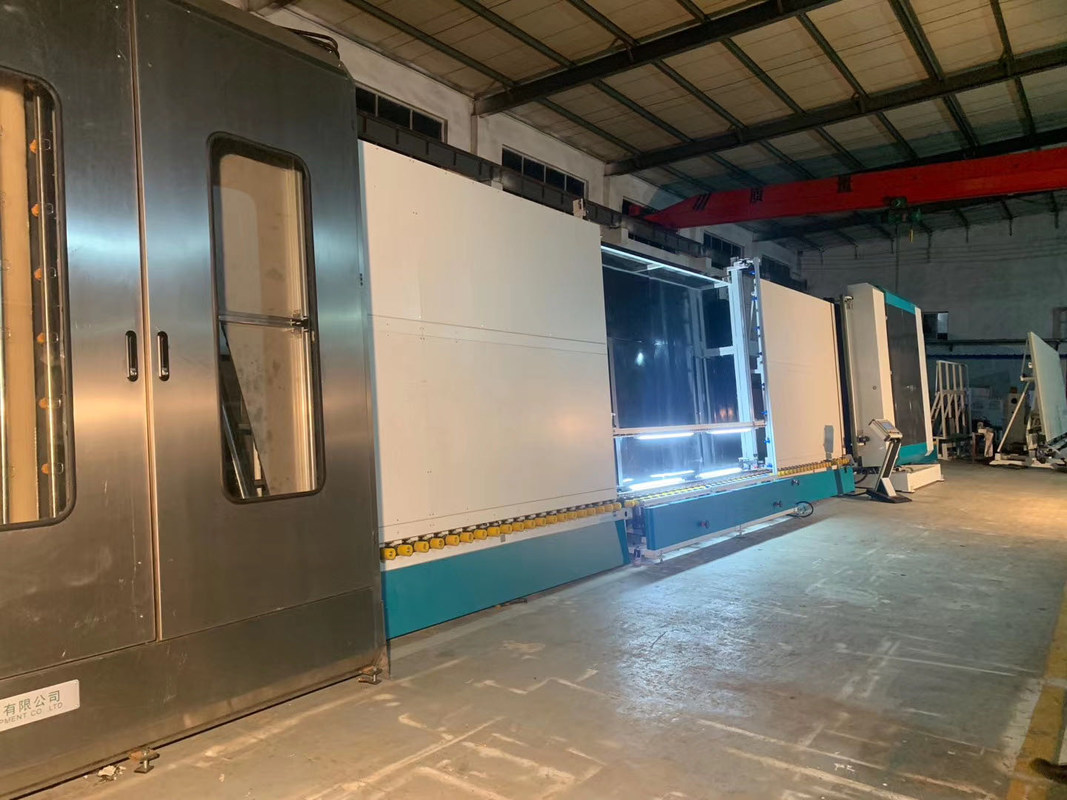

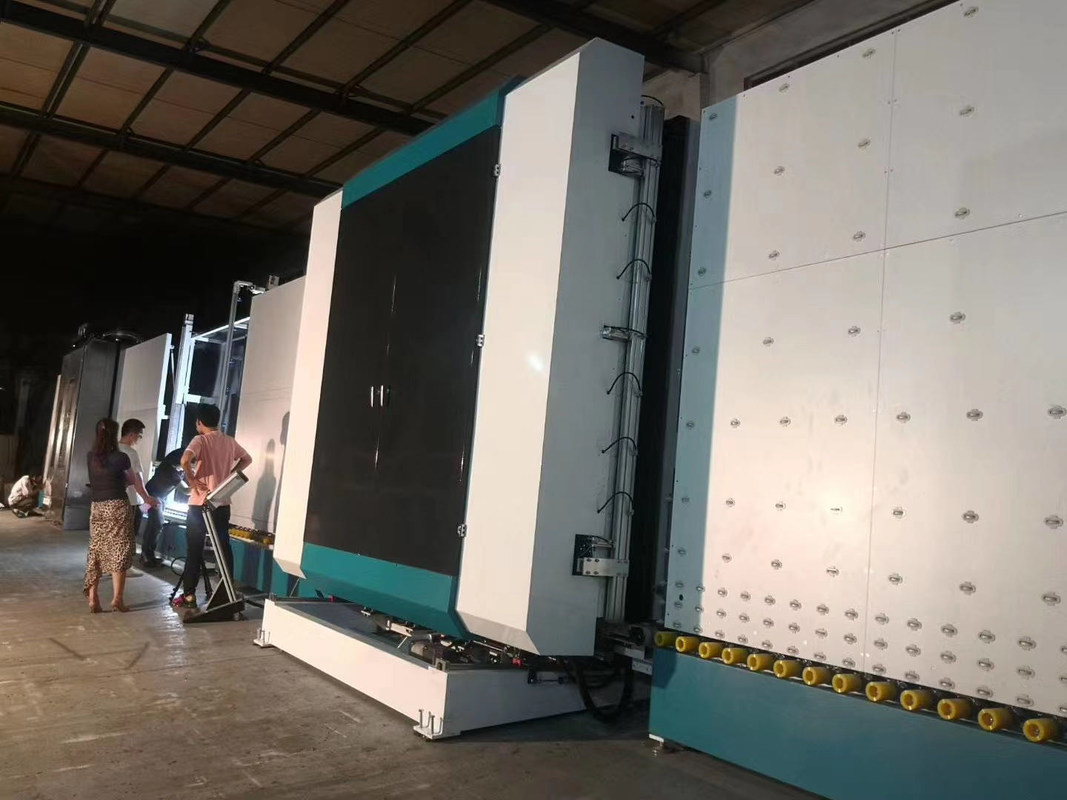

Automatic Double Glazing Hollow Glass Processing Machine
Insulatiing glass machine can perform the following functions: glass cleaning, aluminum frame placement, ordinary double glass, ordinary three glass, shaped glass and double glass second pressure.
The insulating glass machine is a special equipment for the production of aluminum strip insulating glass, which has the advantages of small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and smart operation;
2, famous brand of key components, ensure stable operation and long service life;
3, Designed for high-quality glass processing, such as tempered glass, low-E glass, tempered glass and laminated glass;
4, Large glass processing glass, various models and customization available;
5, Large output capacity, 1,000pcs output per working day;
6, Can be used for double layer, triple layer, stepping sheet and abnormal shaped insulating glass;
7, Automatic filling of argon air gas during the sheet glass assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
