제품 상세 정보:
|
이름: | IGU DGU 온라인 가스 채우는 격리 유리제 기계 생산 라인 | 전력 공급: | 380V, 50HZ 또는 주문을 받아서 만드는 |
---|---|---|---|
총 힘: | 40 KW | 제공되는 판매 후 서비스: | 유효한 기계장치를 해외로 서비스하기 위하여 설계합니다 |
사용법: | 격리 유리를 만들기 | ||
강조하다: | 10m/min 글라스 제조 기계,2m/min 절연 글래스 기계,15 밀리미터가 안경줄을 격리합니다 |

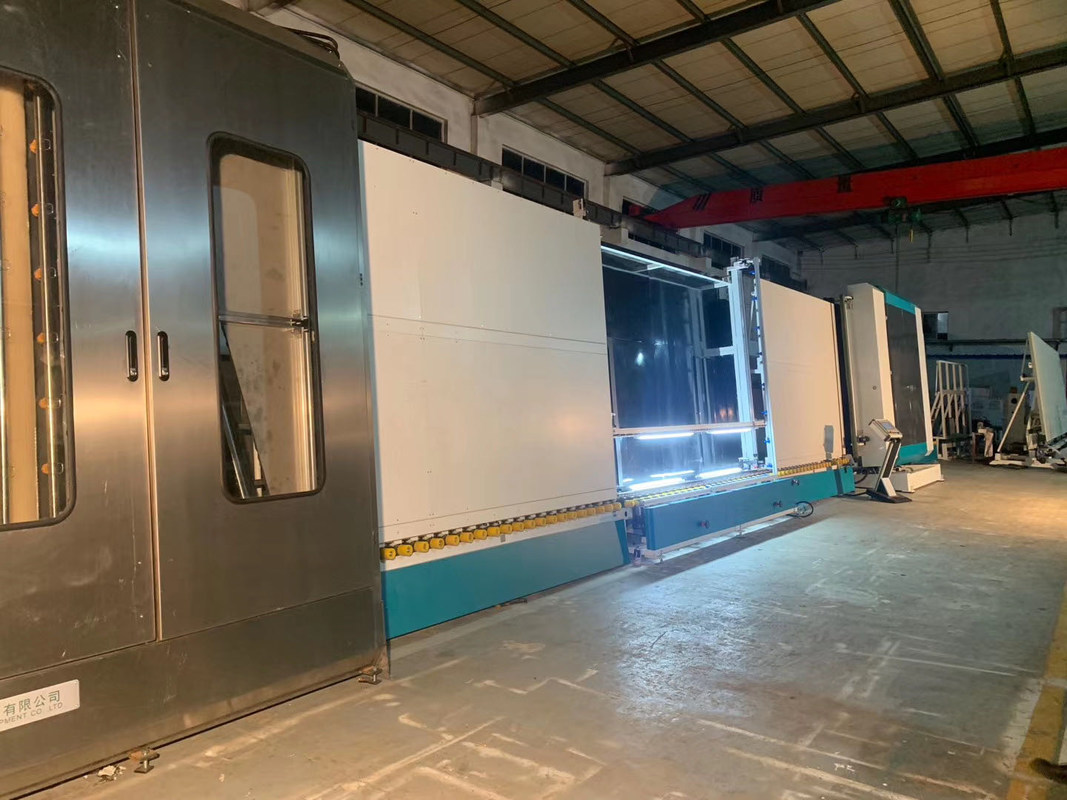

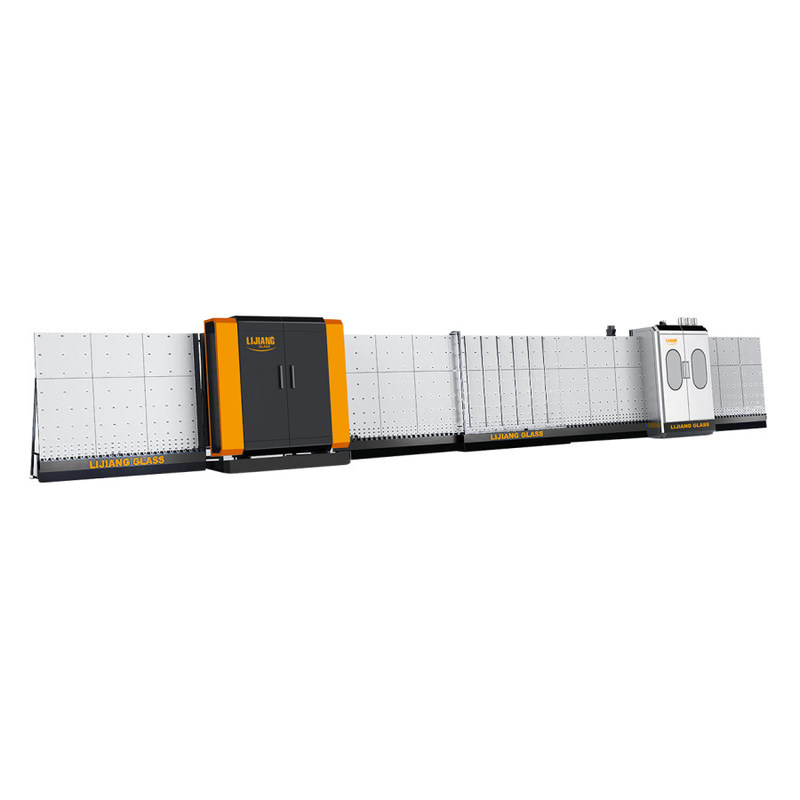

Unit making double glazing insulated glass unit machinery price for sale
The insulating glass machine can perform the following functions: glass cleaning, placement of the aluminum frame, normal double glass, ordinary three-glass, molded glass and double-glass secondary presses.
The insulating glass machine is a special equipment for the production of insulating glass with aluminum strips, which offers the advantage of a small footprint, high efficiency, reliable performance and easy maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1,Europe design concept, easy and intelligent operation;
2,World famous brands of key components, ensure stable operation and long service life;
3,Designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4,Large glass processing scale, various models and customization available;
5,Big output capacity, 1,000pcs output in one working day;
6,Workable for double layer, triple layer, stepped sheet and abnormal shape insulating glass;
7,Automatic argon air gas filling while glass sheet assembling process;
8,PLC controlling system, touching screen operation;
Electrical parameters
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
Touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
Electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD |
Power Supply | 380V,50HZ or customized |
Total Power | 40 KW |
Washing Speed | 2-10m/min |
Max. working speed | 45m/min |
Min.Glass size | 450*280mm |
Max. Glass size |
2500*3200 2500*4500(second pressing) |
Washing glass thickness | 3-15mm |
Max. Insulating glass thickness | 50mm |
Weight | 8000kg |
Dimension (L*W*H) | 23600*3500*3700mm |
