제품 상세 정보:
|
| 이름: | 자동적인 알루미늄 간격 장치 구부리는 기계 | 기억 장치: | 4/12 |
|---|---|---|---|
| Max.bending 크기: | 2000mm*2000mm | Min.bending 크기: | 250mm*200mm |
| 통제 시스템: | 시멘스 PLC | 알루미늄 간격 장치 폭: | 6A-27A |
| 차원 과실: | ±0.1mm | 프로세싱 속도: | ≤26s |
| 기능: | 인쇄 부호, 인쇄지 상표, USB 입력 | 용법: | 알루미늄 구조를 만들기 |
| 하이 라이트: | 장비에 글레이즈를 발라 Machine,27A 스페이서 자동판매기,스페이서 CNC 두배를 만곡시키는 2000mm*2000mm 스페이서 |
||

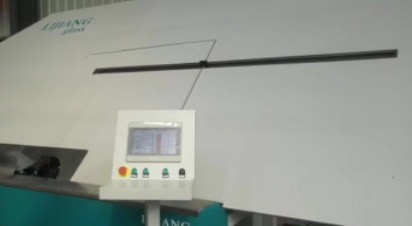

Overview of spacer bar bending machine
Spacer Bar bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Features of Shape Spacer bending machine
1.Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.
2.Automatic spacer bar bending machine adopt Siemens PLC control system.
3.German Siemens CNC servo control system
4.Automatically avoid the connecting corner while bending and cutting
5.Spacer bending machine can bend 8 kinds of spacer
6.Separated guard board outside of bender
7.Auxiliary function of adjustment for bending large aluminum frame
8.Spacer bending machine can realize the code spraying function.
9. USB input fuction,read the excel format file directly etc(Optional)
10. Aluminum bar bending machine can be equipped with label printing function(Optional)
Related products
1.Butyl Extruder Machine LJTB 01
Main feature
• with preheating function
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
2.Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
