제품 상세 정보:
|
| 최대 구부리는 크기: | 2000 * 2000 | 최소한도 구부리는 크기: | 250 * 200 |
|---|---|---|---|
| 알루미늄 간격 장치 폭: | 6A-27A | 이름: | 기계 알루미늄 유리 스페이서 자동판매기를 줄이고 만곡시키는 알루미늄바 |
| 하이 라이트: | 산업 구부리는 기계,간격 장치 막대기 구부리는 기계 |
||

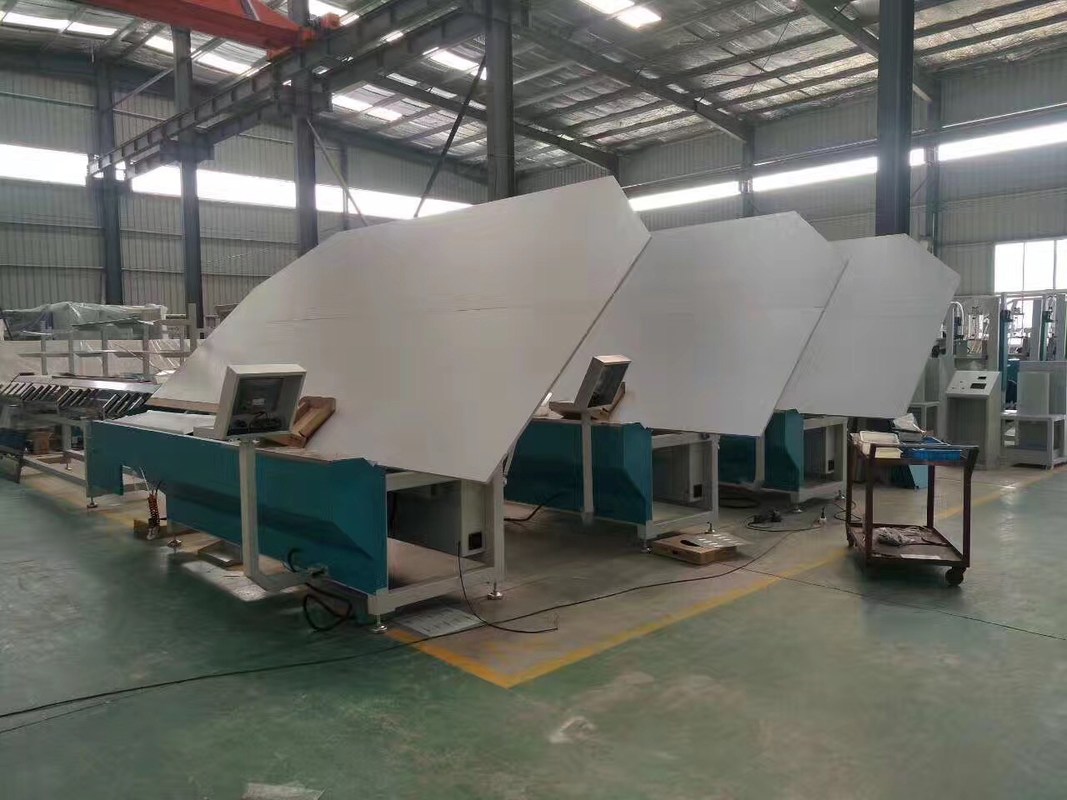

Automatic distance bending is a special tool for the production of aluminum-coated glass frames, which replaces traditional manufacturing technology. These devices can produce a wide range of curved aluminum frames with a single aluminum plate at the same time. This strengthens the strength of the aluminum frame.
Equipment details
Siemens PLC control system is used
There are 4 Siemens services
We accept 4 sets of customizable storage of various sizes. Use Siemens servos instead of different maintenance.
Aluminum is delivered automatically by cutting to normal
Continuously curved frame
Automatically avoid connection angles when folding or cutting
Instead of storing the machine from the bottom up, The machine solves the problem of reversing the problem and holds it from top to bottom.
Immediate drawing of industrial computer workers It uses computer technology that allows graphics to be folded directly.
Made with a special mechanical hand to fold a large distance frame
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
